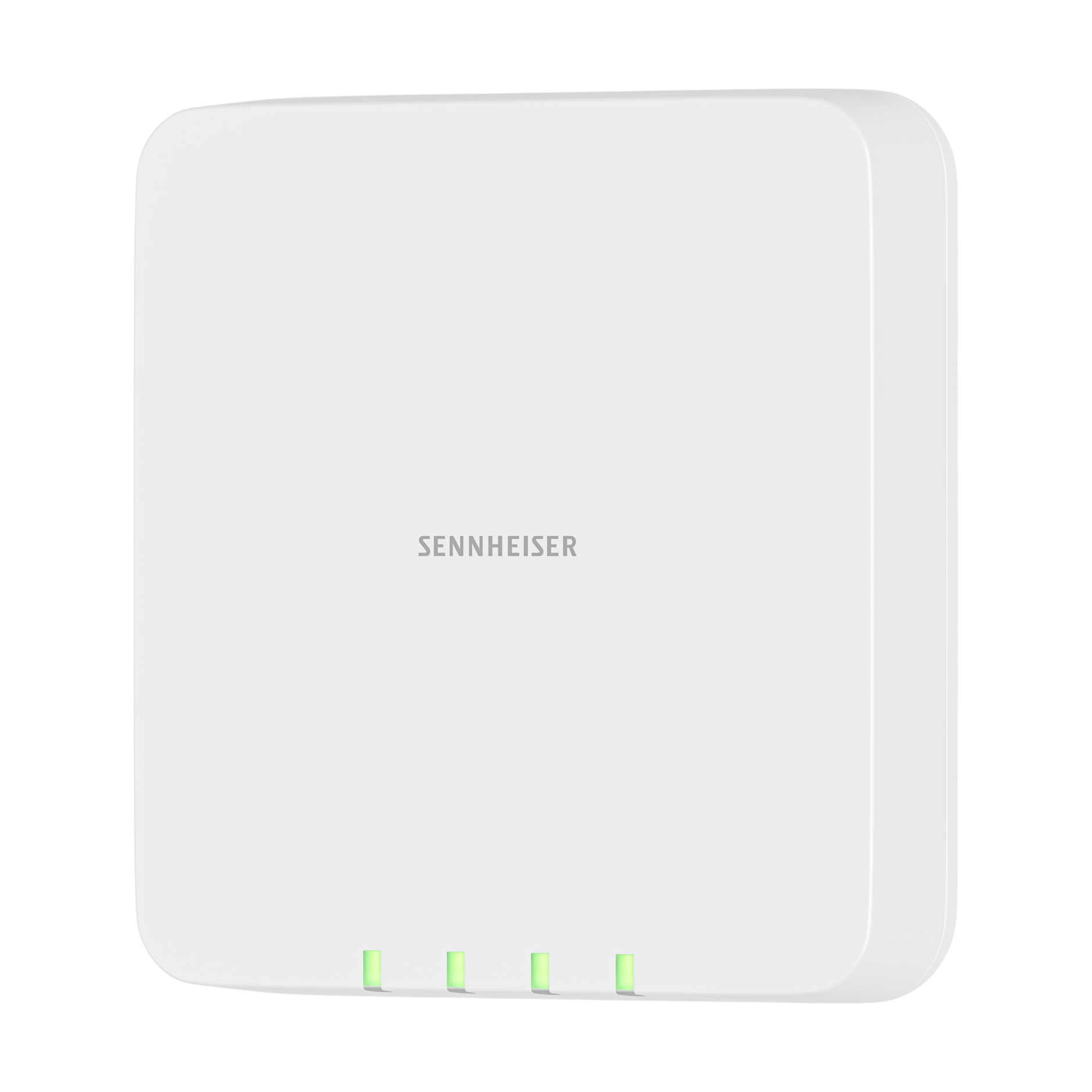

  • SpeechLine_Digital_Wireless_shot_cutout_Isofront_Multi_Channel_ReceiverChange to image slide 1

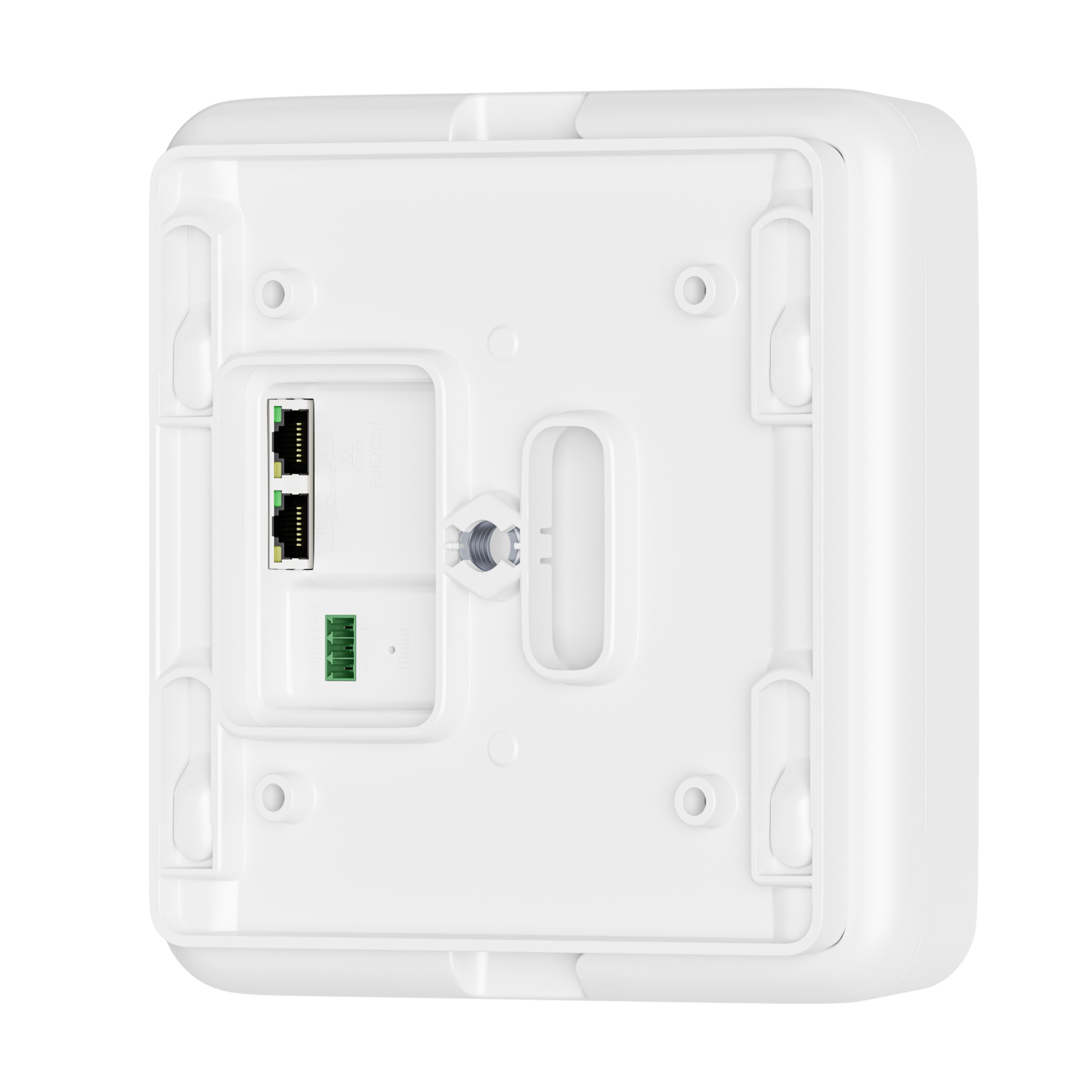

  • SpeechLine_Digital_Wireless_shot_cutout_Isoback_Multi_Channel_ReceiverChange to image slide 2

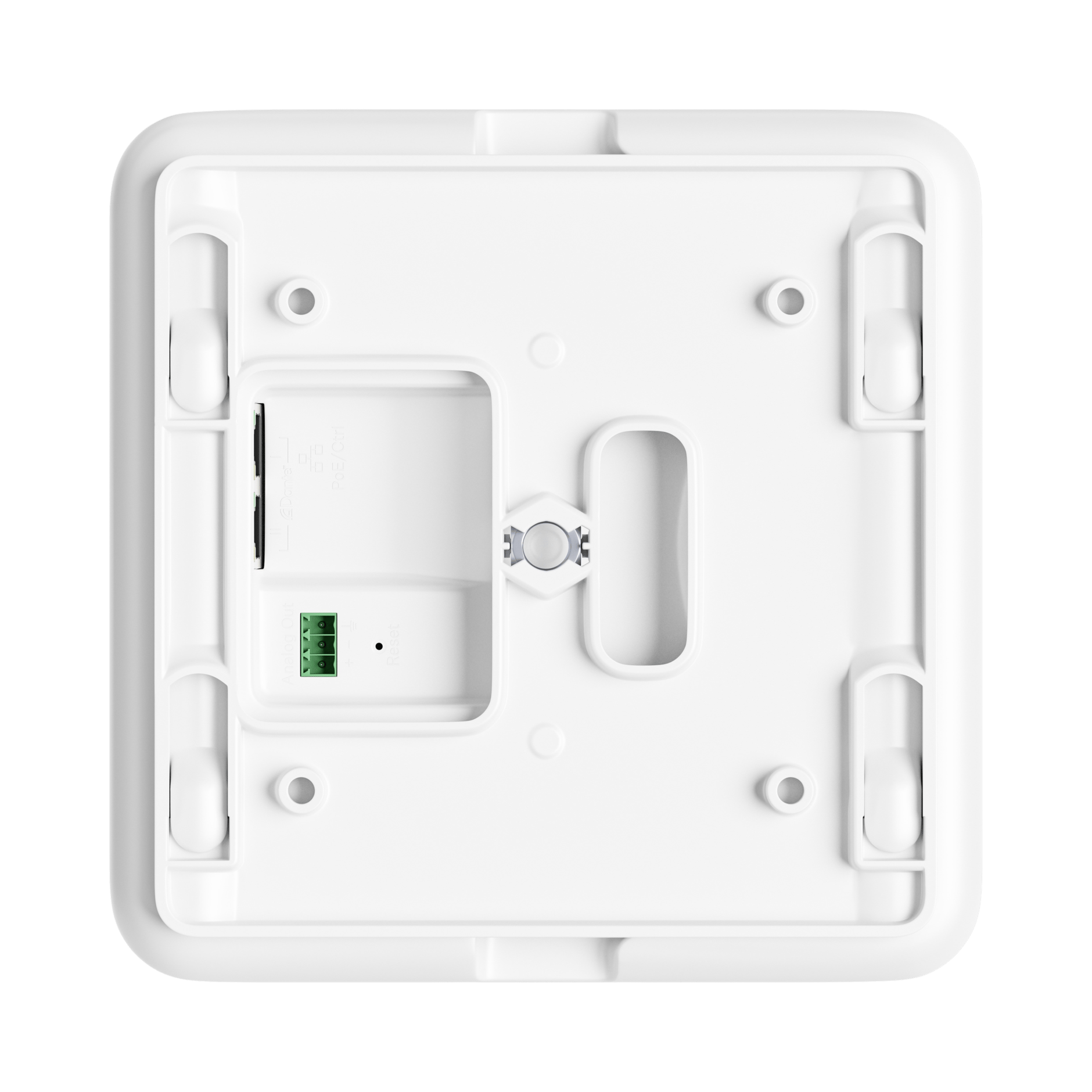

  • SpeechLine_Digital_Wireless_shot_cutout_Isoback_Multi_Channel_Receiver_with_Wall_MountChange to image slide 3

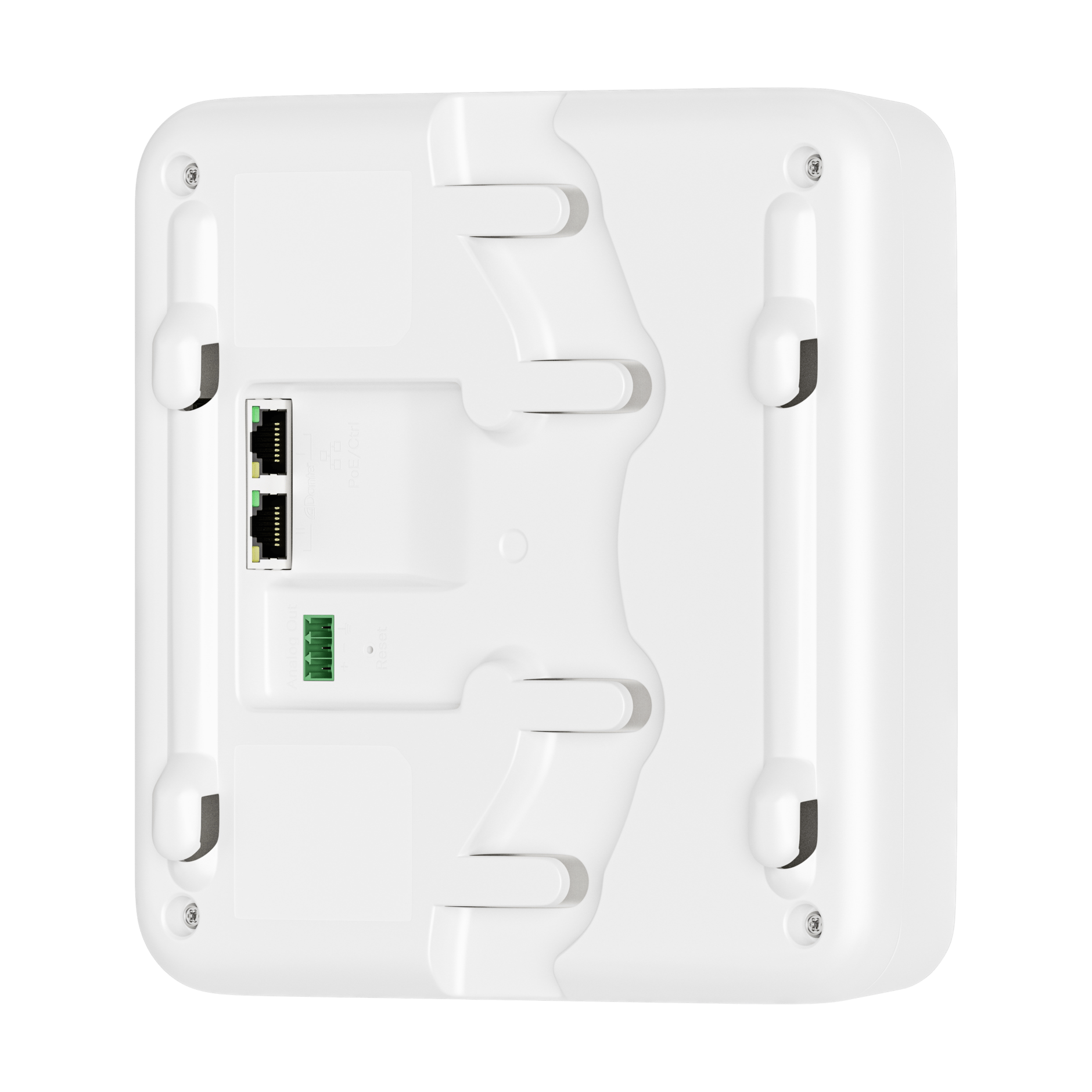

  • SpeechLine_Digital_Wireless_shot_cutout_back_Multi_Channel_ReceiverChange to image slide 4

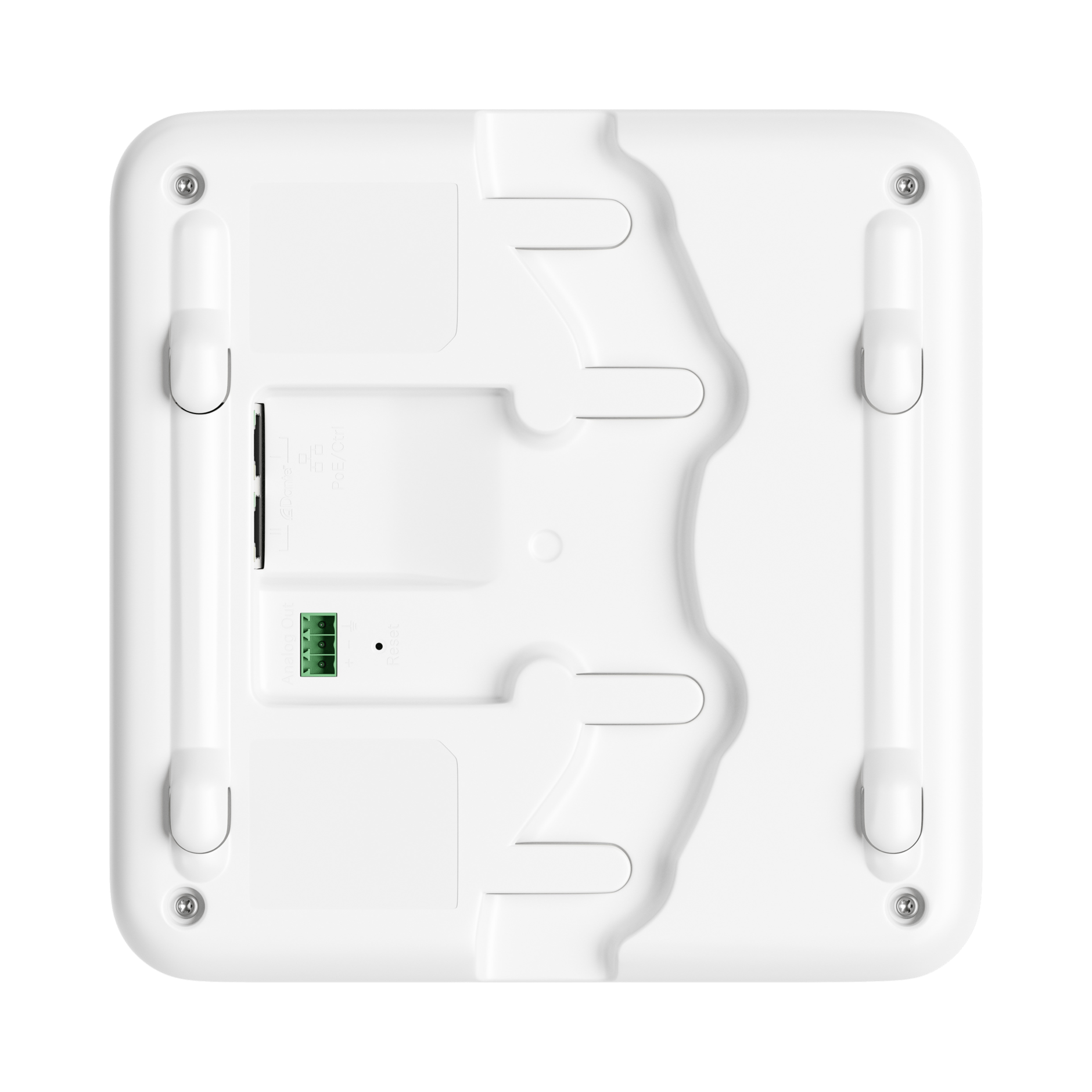

  • SpeechLine_Digital_Wireless_shot_cutout_back_Multi_Channel_Receiver_with_Wall_MountChange to image slide 5

SL MCR 4 DW-4

货号 508855

Features11

  • 自动增益控制
  • 自动频率管理
  • AES 256 加密算法
  • 2个 Dante接口
  • PoE供电
  • 模拟混音输出
  • 每个通道都有独立的LED状态指示灯
  • 通过Control Cockpit软件或中控系统实现远程控制
  • 墙面、天花板或话筒支架安装
  • 集成自動混音器
  • DDM Ready

主要参数

  • 重量 (g)650 g (incl. wallmount)
  • 音频输出One 3-pin socket (suitable for Phoenix Contact MCVW 1.5-3-ST-3.81) Two Dante™ Digital Audio Network sockets (RJ-45)
  • Dante™Primary and Secondary
  • 时延 (ms)23 ms
  • 功耗 (Amp)< 15 W

技术参数

Product
  • 自动增益控制 (AGC)
    Yes
  • 时延 (ms)
    23 ms
  • 颜色
  • 非线性谐波失真系数
    typ. 0.1 %
Frequency Specifications
  • 音频频率特性
    20 to 20,000 Hz
Acoustic Properties
  • 动态范围 (>)
    > 120 dB (A)
Connectivity
  • 接口
    无线
  • 连接插头
    RJ45 (for Ethernet)
Inputs/Outputs
  • Dante™
    Primary and Secondary
  • 音频输出
    One 3-pin socket (suitable for Phoenix Contact MCVW 1.5-3-ST-3.81) Two Dante™ Digital Audio Network sockets (RJ-45)
Ambient Conditions
  • 运行时的相对湿度 (≤ %)
    max. 95 %
  • 工作温度 (C)
    -10°C to +45°C (14°F to 113°F)
Battery & Power
  • Battery included
    N
  • 功耗 (Amp)
    < 15 W
Technology
  • 加密
    AES 256
Dimensions
  • 尺寸
    180 x 180 x 45 mm (incl. wallmount)
  • 高度 (mm)
    94
  • 长度 (mm)
    250
  • 重量 (g)
    650 g (incl. wallmount)
  • 宽度 (mm)
    225
  • Product height
    45
  • Product length
    180
  • Product weight (g)
    560
  • Product width
    180

下载28

chevron-up
  • Instruction manual SpeechLine Digital Wireless (PDF)
    .PDF
    ·
    16.11 MB
    下载
  • SL MCR DW Specifications & Manufacturer declarations
    .PDF
    ·
    668.23 KB
    下载
  • SL_MCR_4_DW_4_2_6_4
    .DNT
    ·
    5.07 MB
    下载
  • Q-SYS control plug-in SpeechLine Digital Wireless
    .QPLUG
    ·
    132.99 KB
    下载
  • Crestron Module SpeechLine Digital Wireless
    .ZIP
    ·
    7.67 MB
    下载
  • 3D model SL MCR DW
    .STP
    ·
    31.39 MB
    下载
  • Outline dimensions SL MCR DW (DWG)
    .DWG
    ·
    1.32 MB
    下载
  • Outline dimensions SL MCR DW (DXF)
    .DXF
    ·
    4.69 MB
    下载
  • System Specification - SpeechLine Digital Wireless
    .PDF
    ·
    1.46 MB
    下载
  • Product specification - SL MCR DW
    .PDF
    ·
    235.56 KB
    下载
  • Configuration of 802.1X for SL Multi-Channel Receiver DW
    .PDF
    ·
    357.77 KB
    下载
  • Digital Brochure SpeechLine Digital Wireless
    .PDF
    ·
    6.63 MB
    下载
  • Planning and setting up single-room and multi-room installations with SpeechLine Digital Wireless
    .PDF
    ·
    274.47 KB
    下载
    • Quick Guide - SL MCR DW
      .PDF
      ·
      2.51 MB
      下载
    • Sennheiser Sound Control Protocol for SpeechLine Digital Wireless
      .PDF
      ·
      501.83 KB
      下载
    • EU Declaration of Conformity - SL Multi-Channel Receiver DW
      .PDF
      ·
      138.04 KB
      下载
    • SpeechLine Digital Wireless Firmware 4.0 (SL Multi-Channel Receiver DW)
      .ZIP
      ·
      7.46 MB
    • SpeechLine Digital Wireless Firmware 4.1 (SL Multi-Channel Receiver DW)
      .ZIP
      ·
      7.46 MB
    • SpeechLine Digital Wireless Firmware 4.2 (SL Multi-Channel Receiver DW)
      .ZIP
      ·
      7.46 MB

    装箱内容05

    • SL MCR DW

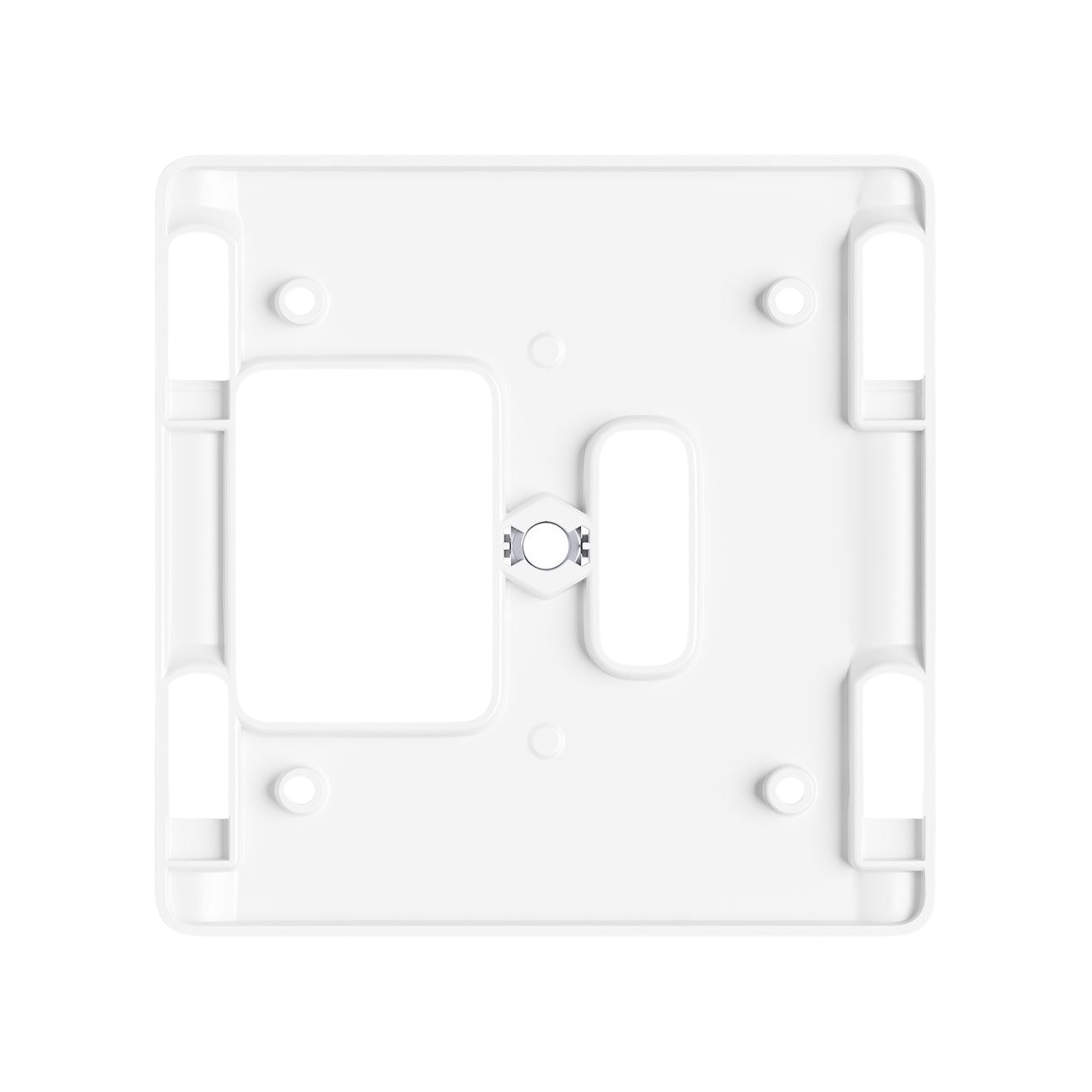

    • 墙面安装板
    • 钻孔模板
    • 3-pin phoenix connector (3,81mm)
    • 快速指导手册
