EM 6000
货号 506657
Features16
- 19’’ 2-通道接收机，19英寸1U
- 非常宽244 MHz工作频带
- 饱受赞誉的长距离模式(LR)，来自于数字9000系列的专利音频编解码技术(SeDAC)
- 高效优化的音频编解码器SePAC。全新的链路密度Link Density链路密度模式（LD模式），确保在1MHz频带内多达5个通道的可靠传输。
- 等间距频率间隔允许更大的通道数量和简单的设置
- 32个高质量RF预选滤波器，优化了天线输入端干扰信号的抑制
- 误码校正和音频误码掩蔽
- AES-256加密技术
- 自动化频率设置
- 数字和变压器平衡式模拟输出XLR、6.3毫米插口、AES-3，EM 6000 Dante版还具有Brooklyn II Card接口卡和Amphenol RJ-45接口
- 内置天线分配器能够实现多达八台接收机的级联使用
- 每通道配置一个高质量OLED显示屏
- 连接质量指示器(LQI)
- 兼容无线系统管理软件（WSM）
- 与Sennheiser标准的UHF天线相兼容
- 在长距离模式下与数字9000系列产品相兼容
主要参数
- 重量 (g)Approx. 5.2 kg
- 音频输入端2x BNC (50 Ω)
- 音频输出Analog audio outputs: XLR-3 and 6.3 mm jack per channel (transformer balanced), -10 dBu to +18 dBu in steps of 1 dB (2 kΩ), Digital audio outputs: AES3-2003, XLR-3: 48 kHz, 96 kHz, 24 bit / Dante®, RJ-45: 48 kHz, 96 kHz, 24 bit, Can be externally synchronized using WCLK loop-through with BNC sockets
- 充电时间 (h)BA 60: 80 %: approx. 1:15 h (approx. 4:45 h operating time) full: approx. 2:30 h, BA 61: 80 %: approx. 1:45 h (approx. 5:00 h operating time) full: approx. 3:15 h, BA 62: 80 %: approx. 1:15 h (approx. 9:30 h operating time) full: approx. 2:45 h, BA 70 80 %: approx. 1:45 h full: approx. 3:30 h
- 时延 (ms)Analog audio out: 3 ms (LR) / 3.2 ms (LD), Digital audio out: 3 ms (LR) / 3.2 ms (LD) (AES/EBU)
- 功耗 (Amp)85 W
- 灵敏度-100 dBm typ.
技术参数
Product
- 接收机工作原理Double superheterodyne
- 非线性谐波失真系数< 0.03 % (@ 1 kHz)
- 时延 (ms)Analog audio out: 3 ms (LR) / 3.2 ms (LD), Digital audio out: 3 ms (LR) / 3.2 ms (LD) (AES/EBU)
Frequency Specifications
- 频率特性30 Hz - 20 kHz (1.5 dB)
- 音频频率特性LR Mode: 30 Hz - 20 kHz (1.5 dB), LR Mode: 30 Hz - 14 kHz (1.5 dB)
Acoustic Properties
- 动态范围 (>)111 dB (A) type
- 音频输出电平XLR-3 and 6.3 mm jack per channel (transformer balanced), -10 dBu to +18 dBu in steps of 1 dB (2 kΩ)
Connectivity
- 接口无线
Inputs/Outputs
- 音频输入端2x BNC (50 Ω)
- 音频输出Analog audio outputs: XLR-3 and 6.3 mm jack per channel (transformer balanced), -10 dBu to +18 dBu in steps of 1 dB (2 kΩ), Digital audio outputs: AES3-2003, XLR-3: 48 kHz, 96 kHz, 24 bit / Dante®, RJ-45: 48 kHz, 96 kHz, 24 bit, Can be externally synchronized using WCLK loop-through with BNC sockets
Ambient Conditions
- 运行时的相对湿度 (≤ %)Max. 85% at 40°C (non-condensing)
- 工作温度 (C)-10 °C to +50 °C (14 °F to 122 °F)
Battery & Power
- Battery includedN
- 充电时间 (h)BA 60: 80 %: approx. 1:15 h (approx. 4:45 h operating time) full: approx. 2:30 h, BA 61: 80 %: approx. 1:45 h (approx. 5:00 h operating time) full: approx. 3:15 h, BA 62: 80 %: approx. 1:15 h (approx. 9:30 h operating time) full: approx. 2:45 h, BA 70 80 %: approx. 1:45 h full: approx. 3:30 h
- 充电电压 (V)BA 60/BA 61: 4.2 V BA 62: 4.35 V BA 70: 4.35 V
- 功耗 (Amp)85 W
Electrical Properties
- 灵敏度-100 dBm typ.
Technology
- 网络协议IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection
- 加密AES 256
- 解码器SeDAC (Sennheiser Digital Audio Codec), SePAC (Sennheiser Performance Audio Codec)
- 传输方法Digital modulation, Long Range Mode (LR): Min. frequency spacing for equidistant grid: 400 kHz, Link Density Mode (LD):Min. frequency spacing for equidistant grid: 200 kHz
Dimensions
- 尺寸44 x 483 x 373 mm
- 高度 (mm)175
- 长度 (mm)550
- 宽度 (mm)435
- Product height44
- Product length373
- Product weight (g)5200
- Product width483
- 重量 (g)Approx. 5.2 kg
下载24
- Firmware Audinate Brooklyn II (Dante Type 1) v2.1.0.12.ZIP·4.16 MB
- Firmware Audinate Brooklyn II (Dante Type 2) v2.1.0.12.ZIP·4.16 MB
- Firmware EM 6000 v 3.2.1 (including SK/SKM 6000 v 1.1.52 and SK 6212 v1.3.23).ZIP·4.47 MB
装箱内容07
- 1台EM6000接收机 一根电源线（具有EU、UK或US插头标准） 快速参考手册 质保手册2根天线2根BNC天线线缆（50欧姆）用于串接2个橡胶脚垫
- 1 条电源电缆（带欧盟、英国或美国插头）
- 快速指南
- 安全指南

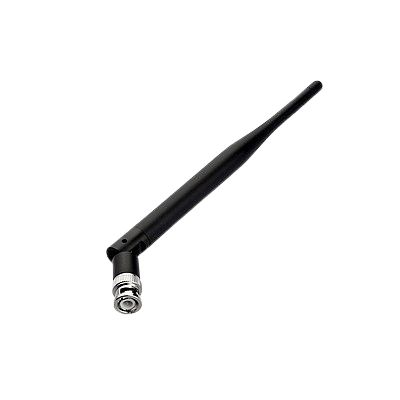

- 2 根天线
- 2 条 BNC 天线电缆 (50 Ω)，用于菊花链
- 2 个橡胶支脚
