Innovation sounds like this
Is it possible to connect more than one antenna to the Spectera base station for range extension?
Yes, up to 4 antennas can be used simultaneously with a single Spectera base station.

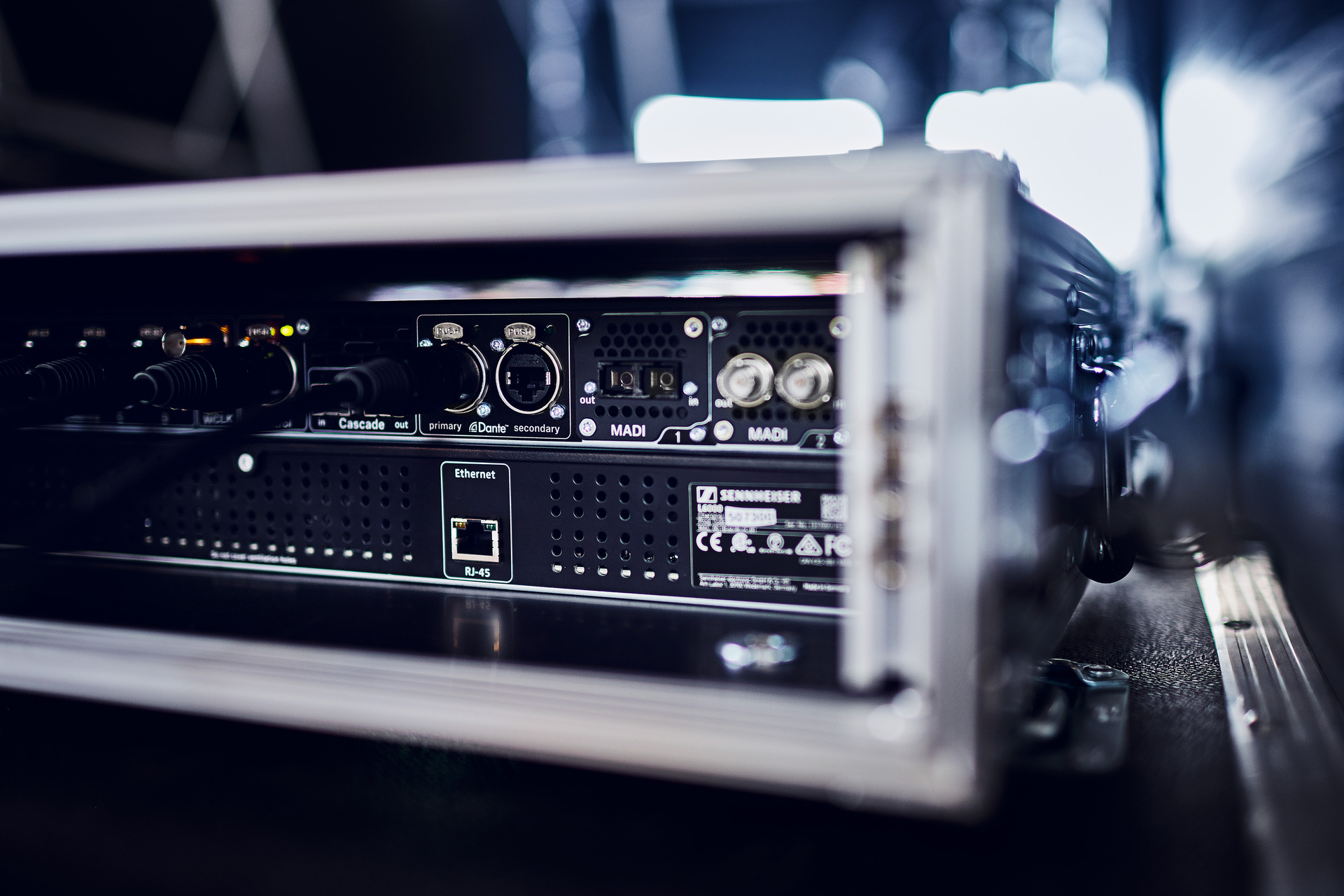

What are the Spectera base station’s redundancy features?
To ensure reliable operation, many connections to the Spectera base station offer redundancy, including its MADI and Dante connectivity, and the power supply. Multi-antenna setups can also be deployed for redundancy.
What audio connections does the Spectera base station have?
The Spectera base station features Dante connectivity and the option for up to two MADI ports. All interfaces can even be used in parallel and clocked independently for easy connection to, for example, Mon, FOH or OB.
Can I use the Spectera SEK bodypack for both IEM and microphone at the same time?
Yes, each bidirectional Spectera SEK bodypack manages both IEM and mic/line signals simultaneously.
Why does the Spectera SEK bodypack have a multiturn volume encode?
The multiturn encoder on the Spectera SEK bodypack offers numerous advantages. It allows remote control of the bodypack and monitoring of signal level. It helps to guard against accidentally powering off the bodypack. It offers finer resolution adjustments (0.5dB per click), and you can define the volume range with upper and lower limits.
Can I monitor battery status and IEM antenna level of the Spectera SEK bodypack?
Yes, the wideband RF channel offers full remote control and monitoring of all parameters of each Spectera SEK bodypack.
What cable length can be used with the Spectera DAD antenna?
The Spectera DAD antenna is compatible with standard network cables up to 100 meters in length.
With the Spectera DAD antenna, can I extend the cable beyond 100 meters if needed?
Yes, it's possible to use standard media converters to convert to fiber and extend up to 4 kilometers without any losses.
With the Spectera DAD antenna, can I run the antenna signal via a network switch?
No, the Spectera DAD antenna requires a direct connection to the base station. This is part of the system design and is needed to achieve the lowest possible latency.
With their broadband audio transmission, Wireless Multi-Channel Audio Systems (WMAS) open up exciting perspectives for digital wireless microphones and digital in-ear monitoring systems in live audio events as well as theatre and broadcasting installations.
Unified Wireless Control
Bidirectional wireless ecosystem; data and audio control in a single RF carrier for all components
Bidirectionality
Bidirectional SEK bodypack manages both IEM and mic/line signals simultaneously
Transceiving Antennas
Transceiving antennas manage IEM signals, mic/line signals, and data simultaneously Continuous bidirectional communication for full remote control and monitoring of SEK bodypack links, IEM volume, audio level and settings, RF health, battery status, and more
Single RF Carrier
Innovative Sennheiser WMAS technology accommodates an entire production in a single wideband RF carrier (6/8 MHz)
Integrated RF Components
Integrated RF components in DAD antenna eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters
Enhanced Dropout Resistance
Vastly more resistant to dropouts from RF fading than traditional narrowband systems via innovative Sennheiser WMAS technology equal to 40x diversity (8 MHz) / 30x diversity (6 MHz)
Intuitive Workflow
Intuitive workflow via LinkDesk user interface: plan and preconfigure from anywhere with LinkDesk virtual setup for Windows and Mac
64-Channel Base Station
1 RU base station provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz)
Unified Wireless Control
Bidirectional wireless ecosystem; data and audio control in a single RF carrier for all components
Bidirectionality
Bidirectional SEK bodypack manages both IEM and mic/line signals simultaneously
Transceiving Antennas
Transceiving antennas manage IEM signals, mic/line signals, and data simultaneously Continuous bidirectional communication for full remote control and monitoring of SEK bodypack links, IEM volume, audio level and settings, RF health, battery status, and more
Single RF Carrier
Innovative Sennheiser WMAS technology accommodates an entire production in a single wideband RF carrier (6/8 MHz)
Integrated RF Components
Integrated RF components in DAD antenna eliminate the need for additional dedicated RF gear such as combiners, splitters, or boosters
Enhanced Dropout Resistance
Vastly more resistant to dropouts from RF fading than traditional narrowband systems via innovative Sennheiser WMAS technology equal to 40x diversity (8 MHz) / 30x diversity (6 MHz)
Intuitive Workflow
Intuitive workflow via LinkDesk user interface: plan and preconfigure from anywhere with LinkDesk virtual setup for Windows and Mac
64-Channel Base Station
1 RU base station provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz)
Determine the required RF carriers and base stations for your system with precise recommendations tailored to your audio link needs, ensuring efficient and reliable wireless performance.
