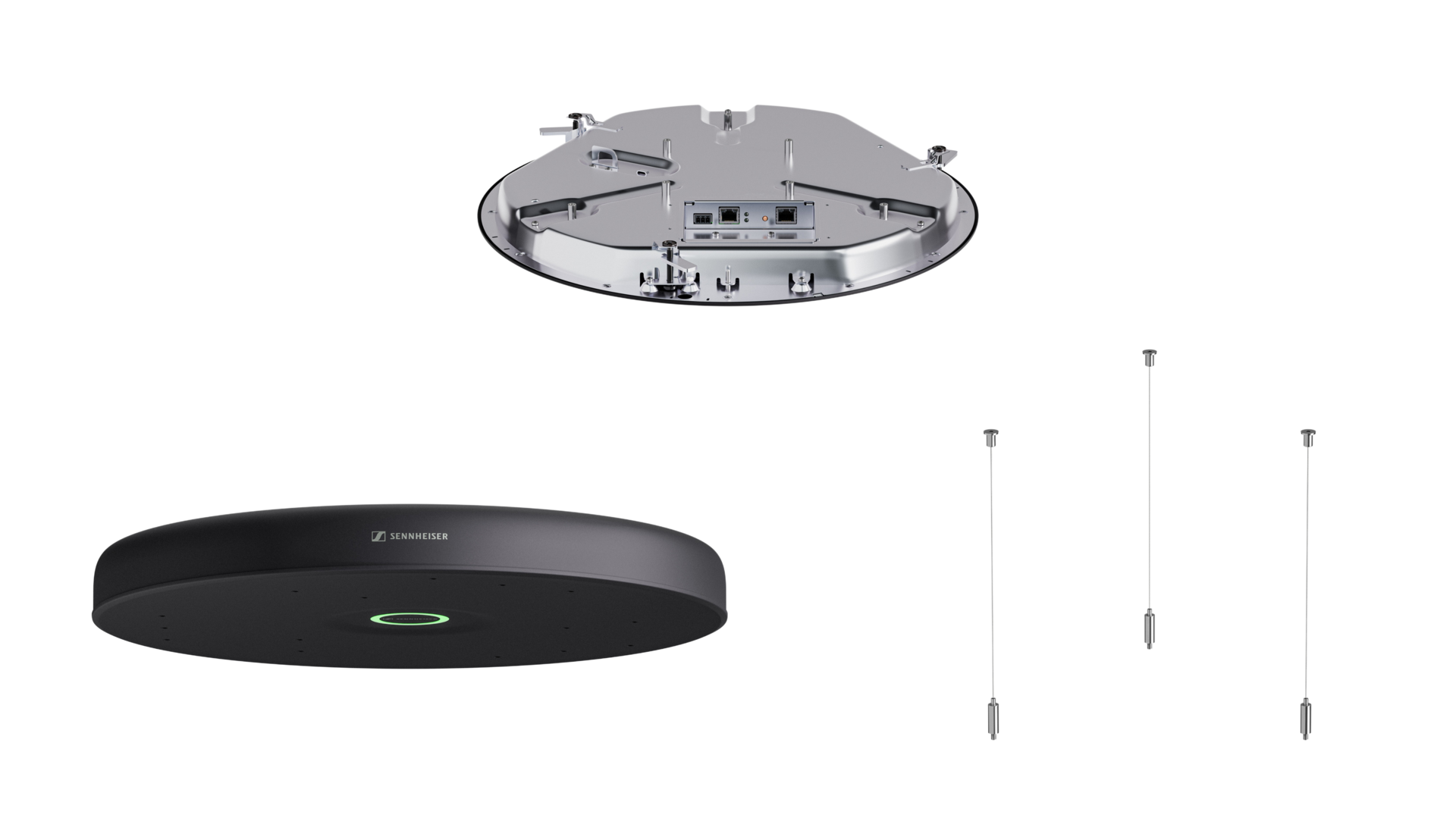

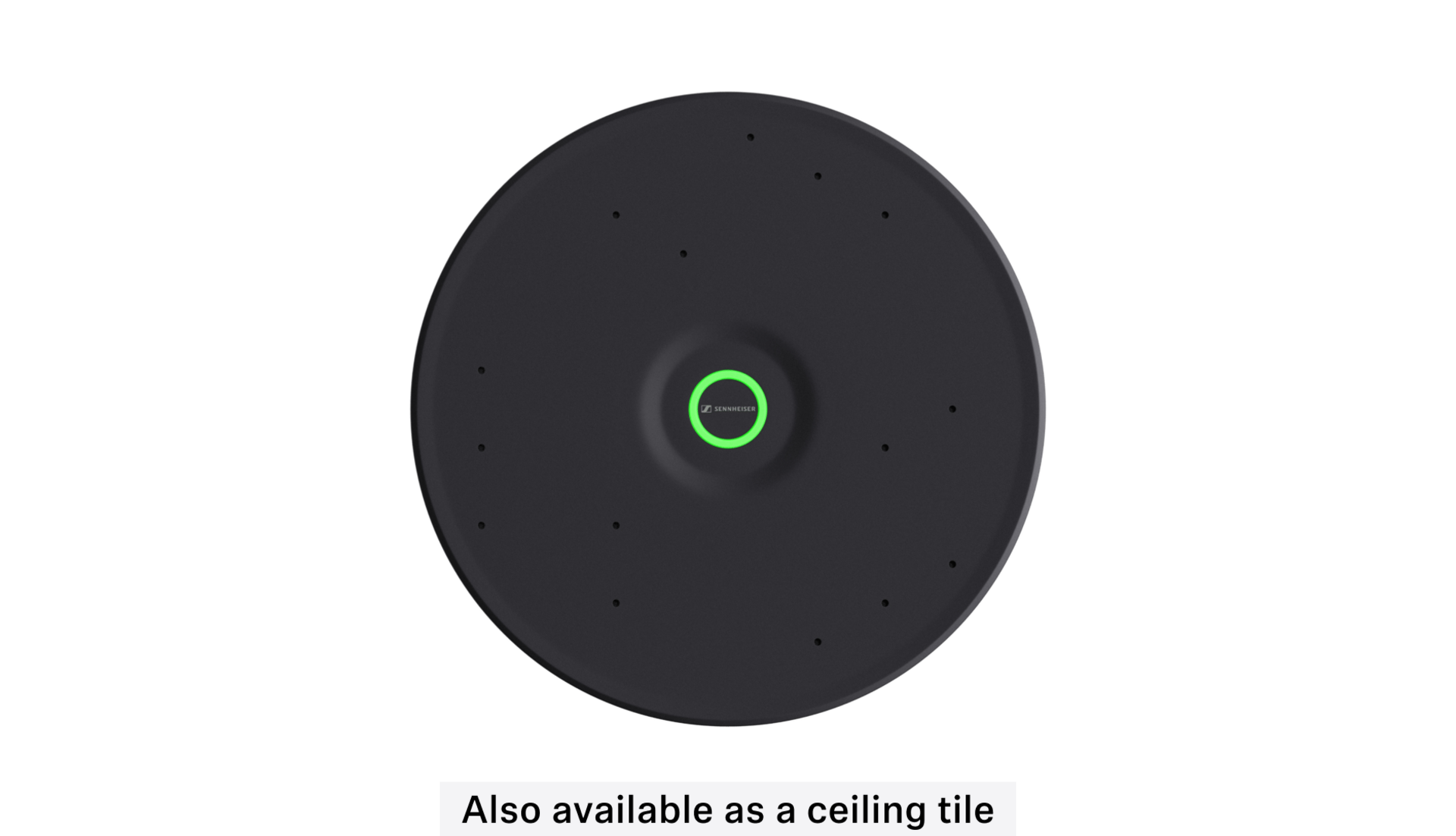

TeamConnect Ceiling Medium S-B

Article No. 700295

TeamConnect Ceiling Medium brings versatility and adaptability to elevate your meeting experience across a range of flexible and hybrid meeting spaces and learning environments.

With its adaptive, intelligent beamforming technology, TeamConnect Ceiling Medium ensures flawless audio every time. Effortless integration with single cable mode and numerous design and installation options ensure TeamConnect Ceiling Medium transforms any room into a hub of collaboration.

The TeamConnect Ceiling Medium can only be purchased as a Kit and not as a single article.

Please note: the TeamConnect Ceiling Medium is password protected by default and must be initialized with Sennheiser Control Cockpit before first use. For enhanced security, audio is muted before the initialization is complete.

Features¹⁶

Patented automatic dynamic beamforming
TruVoicelift
15 SMD Electret condenser capsules made in Germany
Perfect speech intelligibility
Dante or Analog Output
PoE/PoE+ powered (single/daisy chaining)
Single-cable mode
Exclusion & Priority Zones
Camera Control via talker position data
Encrypted Sennheiser Sound Control Protocol API (SSCv2) with TLS 1.2
Options for flush, surface, suspended or VESA mounting
Easily paintable metal housing
IEEE 802.1x
Intelligent Noise Control
Color: Black
Certified for Microsoft Teams

Top Specs

ColorBlack
Weight (g)max. 4,9 kg (10.8lbs)
Audio output1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
Max. sound pressure level98 dB SPL
Power consumption (Amp)Approx. 8 W
Sensitivity0 dBV/Pa (1020 mV/Pa)
Signal-to-noise ratio79 db(A)
Transducer principlePre-polarized condenser microphone

Awards

Tech Specs

Product

Transducer principle
Pre-polarized condenser microphone
Warranty AMER (years)
5
Color
Black

Frequency Specifications

Audio frequency response (Hz)
100 Hz to 16,000 Hz
Audio frequency response
100 Hz to 16,000 Hz

Acoustic Properties

Dynamic range (>)
83 db(A)
Equivalent noise level (db)
15 db(A)
Max. sound pressure level
98 dB SPL
Signal-to-noise ratio
79 db(A)

Connectivity

Connection
Wired

Inputs/Outputs

Audio output
1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)

Ambient Conditions

Operating relative humidity (≤ %)
20 to 95%, non-condensing

Battery & Power

Battery included
N
Power consumption (Amp)
Approx. 8 W

Electrical Properties

Sensitivity
0 dBV/Pa (1020 mV/Pa)

Dimensions

Height (mm)
46
Length (mm)
407
Weight (g)
max. 4,9 kg (10.8lbs)
Width (mm)
407
Product height
27
Product length
407
Product weight (g)
4900
Product width
407

Downloads³⁷

Safety Instructions and Regulatory Information

Safety Guide - TeamConnect Ceiling Medium
.PDF
·
1.27 MB
Download

Release Notes

TCC M Firmware Release Notes 1.5.4 EN
.PDF
·
131.48 KB
Download
2023_06_TCC_M_Dante_Firmware_Release_Notes_EN
.PDF
·
127.83 KB
Download

Firmware Updates

TCC M 1.5.4
.SENNPKG
·
47.23 MB
Download
Firmware_tccm_dante_1.0.2
.DNT
·
17.23 MB

3rd Party Integration

TCC M Extron Reference Design - Teams Certified - Medium room
.PDF
·
506.36 KB
Download
TCC M Extron Reference Design - Teams Certified - Extra Large Room
.PDF
·
563.23 KB
Download
TCC M Extron Reference Design - Teams Certified - Large Room
.PDF
·
559.22 KB
Download
TCC M Extron Reference Design - Medium Room
.PDF
·
2.7 MB
Download
TCC M Xilica Reference Design - Medium Room
.PDF
·
2.58 MB
Download
TCC M Q-SYS Reference Design - Medium Room
.PDF
·
2.46 MB
Download
Crestron Module TeamConnect Ceiling M
.ZIP
·
24.33 MB
Download
Q-SYS control plug-in TeamConnect Ceiling M (V 1.0.0)
.QPLUG
·
129.93 KB
Download

EU Declaration of Conformity

EU Declaration of Conformity
.PDF
·
697.87 KB
Download

Compliance Statements

Compliance Sheet - TeamConnect Ceiling Medium
.PDF
·
1.26 MB
Download
US FCC Supplier's Declaration of Conformity
.PDF
·
184.92 KB
Download
UKCA Declaration of Conformity
.PDF
·
679.97 KB
Download
TCCM - Letter of Volatility
.PDF
·
95.46 KB
Download

Technical Drawings

3D model TeamConnect Ceiling Medium TCC M-S (STP)
.STP
·
28.61 MB
Download
Outline Dimensions TeamConnect Ceiling Medium TCC M-S (DWG)
.DWG
·
2.22 MB
Download
Outline Dimensions TeamConnect Ceiling Medium TCC M-S (DXF)
.DXF
·
7.85 MB
Download
Outline dimensions TeamConnect Ceiling Medium TCC M-S (PDF)
.PDF
·
387.5 KB
Download
