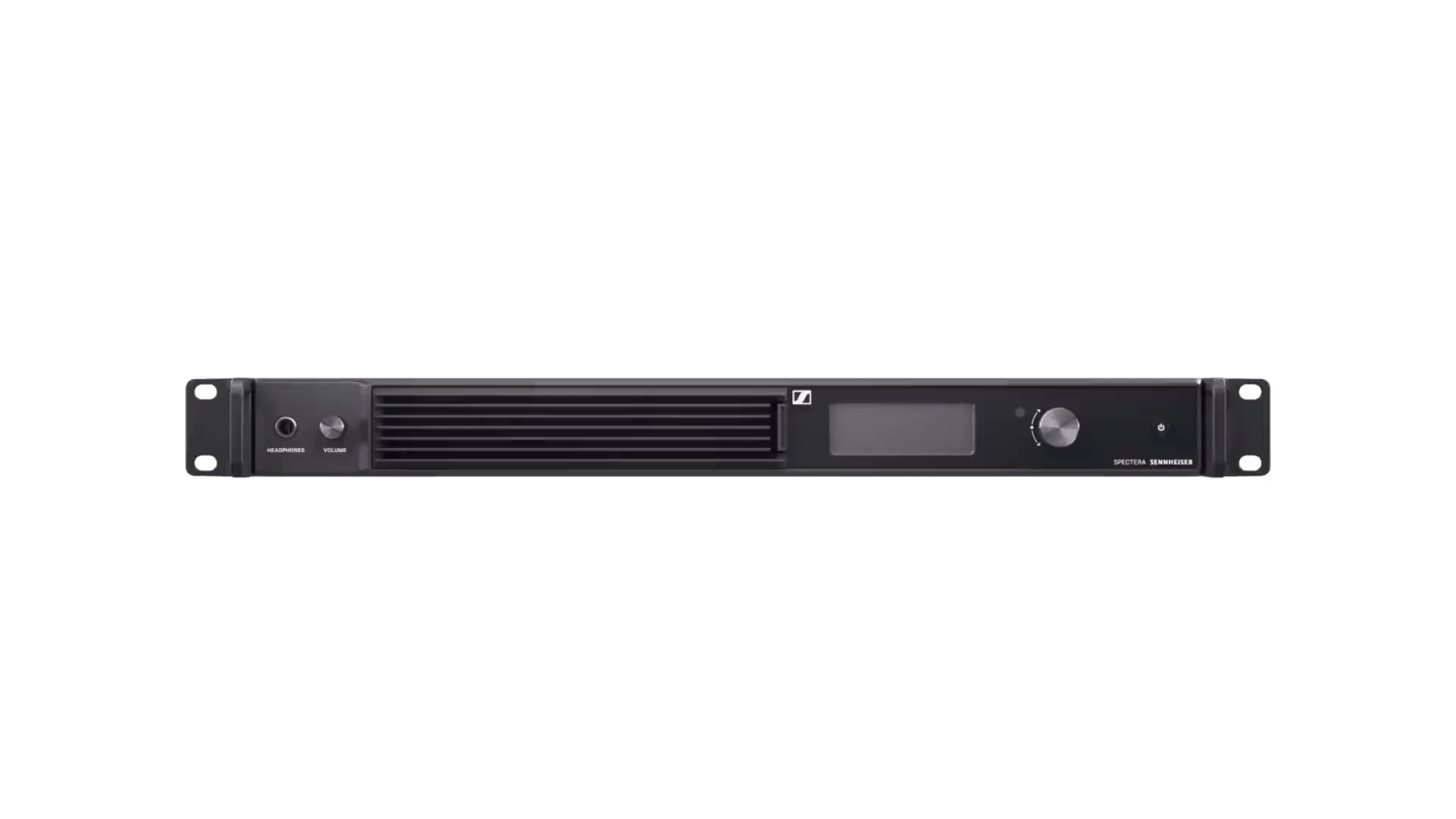

  • SPECTERA_Base_Station_Product_Shot_Cutout_FrontChange to image slide 0
  • SPECTERA_Base_Station_Product_Shot_Cutout_BackChange to image slide 1

Spectera Base Station

Article No. 509162

The Spectera Base Station is a 1RU hardware device that provides up to 64 channels (32 in/32 out) and utilizes up to two wideband RF carriers to accommodate all of the unit’s wireless transmission.

It features redundant Dante and optional redundant Madi, assuring seamless integration into your audio network. Additional antennas can be added for redundancy, extended zone coverage, or additional spectrum capacity.

The Spectera Base Station supports sample rates of 48 kHz and 96 kHz and features individual sample rate converters for all audio interfaces and wordclock I/O. Base Station must be activated with license per region.
Scroll to:

Features17

  • 19’’ 1 RU Base Station with redundant power supplies
  • Provides up to 64 channels (32 in / 32 out) and allows for up to two independent wideband RF carriers in UHF or 1G4 (6 or 8 MHz) – country specific per region license
  • 4 ethernet antenna ports for redundancy, extended zone coverage, and additional spectrum usage
  • Redundant Dante® audio interface
  • Two optional slots for redundant MADI (OM or BNC)
  • Sample rates of 48 kHz and 96 kHz
  • Individual sample rate converters for all audio interfaces
  • Wordclock I/O BNC
  • Synchronized clock for all audio over RF allows 3D recordings and playback
  • Adjustable RF power from 10 – 100 mW (country specific)
  • RJ45 network interface for full remote control with secured interface
  • 11 Audio Link modes with selectable audio codecs (OPUS, SeDAC) or PCM
  • Secure transmission of confidential content using AES 256 encryption
  • Future expansion via Cascade port
  • Selective headphone output with volume control on front panel
  • OLED display, jog wheel navigation, and rugged metal housing
  • Base Station activation via LinkDesk: Spectera license defines respective frequency spectrum per region (license sold separately)

Top Specs

  • ColorBlack
  • Connection ports(2) Dante® RJ 45 (Primary and Secondary) 32 In, 32 Out, 48 kHz, 96 kHz, 16/24/32 bit|(2) MADI (AES10) Expansion Slot 32 In, 32 Out, 48 kHz, 96 kHz, 16/24 bit|Individual sample rate for each interface|6.3 mm headphone jack, 2 × 50 mW at 32 Ω -40 dB THD (1%) at 1 kHz
  • Dante™IEEE 802.3 (1000 Mbit/s), 2 × ruggedized RJ-45 connection
  • Latency (ms)tbd per ALM
  • Power consumption (Amp)70 W x 2
Play

Tech Specs

Product
  • Color
    Black
  • Latency (ms)
    tbd per ALM
  • Min. channel spacing (kHz)
    matches to used bandwidth mode
  • Warranty AMER (years)
    2
Frequency Specifications
  • Audio frequency response
    20 Hz - 20 kHz (±1 dB)
Acoustic Properties
  • Audio output level
    2 x 50mW RMS (32 Ω, -40dB THD, 1kHz)
  • Sampling rates
    48 kHz | 96 kHz
Connectivity
  • Connection ports
    (2) Dante® RJ 45 (Primary and Secondary) 32 In, 32 Out, 48 kHz, 96 kHz, 16/24/32 bit|(2) MADI (AES10) Expansion Slot 32 In, 32 Out, 48 kHz, 96 kHz, 16/24 bit|Individual sample rate for each interface|6.3 mm headphone jack, 2 × 50 mW at 32 Ω -40 dB THD (1%) at 1 kHz
  • Connectors
    6.3mm TRS, BNC 75 OHM, RJ45 1Gbps PoE, RJ45 Dante, RJ45 (for Ethernet), SFP
Inputs/Outputs
  • Dante™
    IEEE 802.3 (1000 Mbit/s), 2 × ruggedized RJ-45 connection
  • Antenna output
    RJ45 1Gbps PoE
Ambient Conditions
  • Storage relative humidity
    25 - 95% (non-condensing)
  • Storage temperature range
    -25 °C - +70 °C (-13 °F - 158 °F)
  • Operating relative humidity (≤ %)
    25 - 95% (non-condensing)
  • Operating temperature (C)
    -10 °C - +50 °C (14 °F - 122 °F)
Battery & Power
  • Battery included
    N
  • Power consumption (Amp)
    70 W x 2
Electrical Properties
  • Input voltage
    2 x internal redundant 100 to 240 V AC, 50/60 Hz
Technology
  • Encryption
    AES 256 CTR Mode exp. >10k years
  • Codecs
    OPUS, PCM, SeDAC (Sennheiser Digital Audio Codec)
  • Transmission method
    Multicarrier, TDMA, TDD
Dimensions
  • Product height
    175
  • Product length
    550
  • Product weight (g)
    8200
  • Product width
    435

Downloads17

chevron-up
  • SPECTERA Base Station Spec Sheet (EN)
    .PDF
    ·
    413.43 KB
    Download
  • SPECTERA Systems Rev 1_0-Scenario 1
    .PDF
    ·
    630.03 KB
    Download
  • SPECTERA Systems Rev 1_0-Scenario 2
    .PDF
    ·
    930.67 KB
    Download
  • SPECTERA Systems Rev 1_0-Scenario 3
    .PDF
    ·
    901.33 KB
    Download
  • SPECTERA Systems Rev 1_0-Scenario 4
    .PDF
    ·
    673.41 KB
    Download
  • SPECTERA Systems Rev 1_0-Scenario 5
    .PDF
    ·
    787.79 KB
    Download
  • SPECTERA Systems Rev 1_0-Scenario 6
    .PDF
    ·
    1.2 MB
    Download
  • SPECTERA Systems Rev 1_0-Scenario 7
    .PDF
    ·
    747.67 KB
    Download
  • SPECTERA Systems Rev 1_0-Scenario 8
    .PDF
    ·
    974.62 KB
    Download
  • SPECTERA Systems Rev 1_0 Scenarios 1-8
    .PDF
    ·
    5.37 MB
    Download
  • Technical Drawing - Spectera Base Station (stp)
    .STP
    ·
    48.32 MB
    Download
  • Technical Drawing - Spectera Base Station (dxf)
    .DXF
    ·
    11.78 MB
    Download
  • Technical Drawing - Spectera Base Station (pdf)
    .PDF
    ·
    741.82 KB
    Download

What's in the box04

  • (1) Spectera Base Station
  • (3) Mains Cable (EU, UK and US plug)
  • (1) quick guide
  • (1) safety guide

Accessories and spare parts03

Spectera_MADI_Card_BNC_Product_Shot_Cutout_Front_View
Spectera MADI Card (BNC)
Spectera_MADI_Card_OM_Product_Shot_Cutout_Front_View
Spectera MADI Card (OM)
Spectera_Base_Station_Base_Filter_Set_Product_Shot_Cutout_Front_View_3x
Spectera Filter Set
