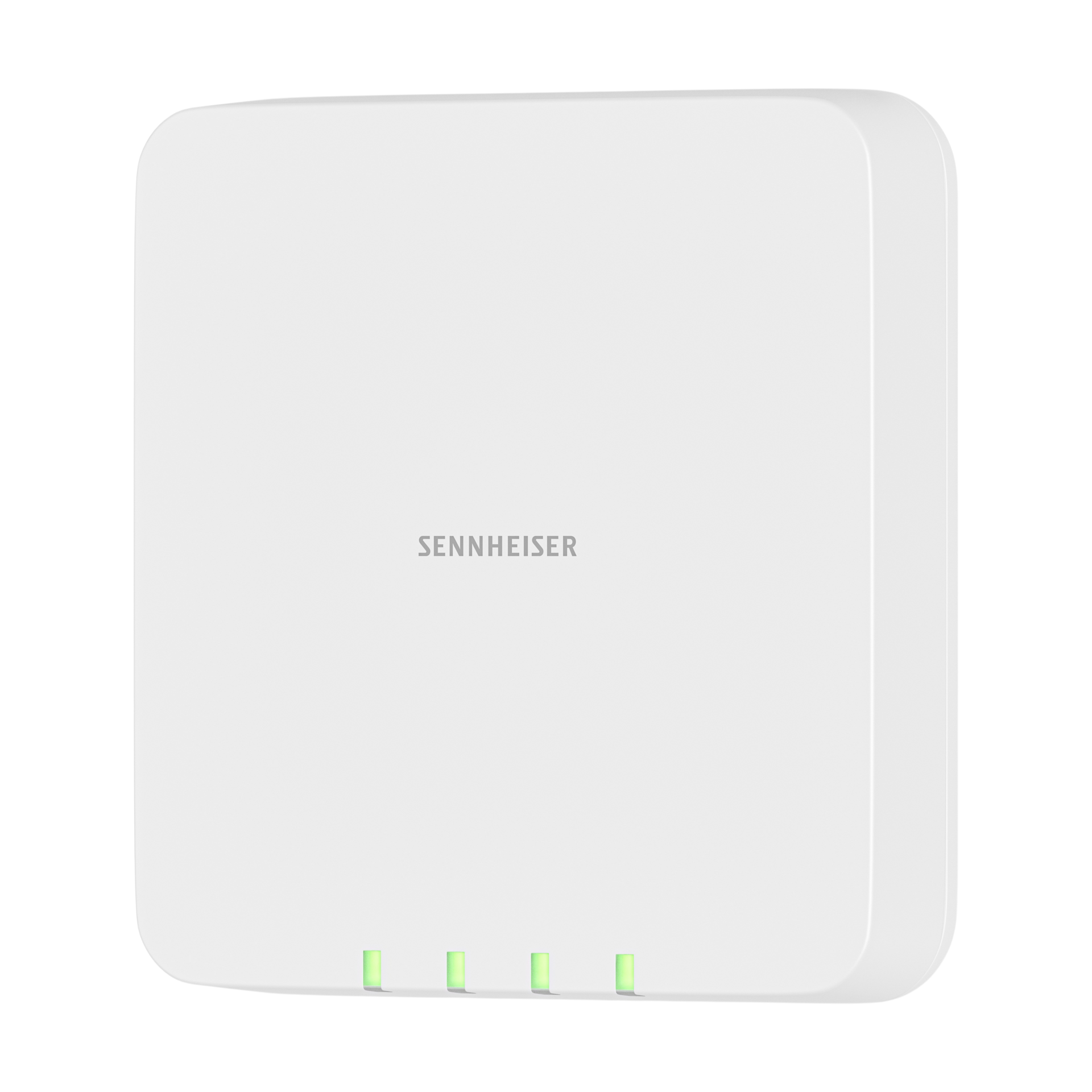

  • SpeechLine_Digital_Wireless_shot_cutout_Isofront_Multi_Channel_ReceiverChange to image slide 1
  • SpeechLine_Digital_Wireless_shot_cutout_Isoback_Multi_Channel_ReceiverChange to image slide 2
  • SpeechLine_Digital_Wireless_shot_cutout_Isoback_Multi_Channel_Receiver_with_Wall_MountChange to image slide 3

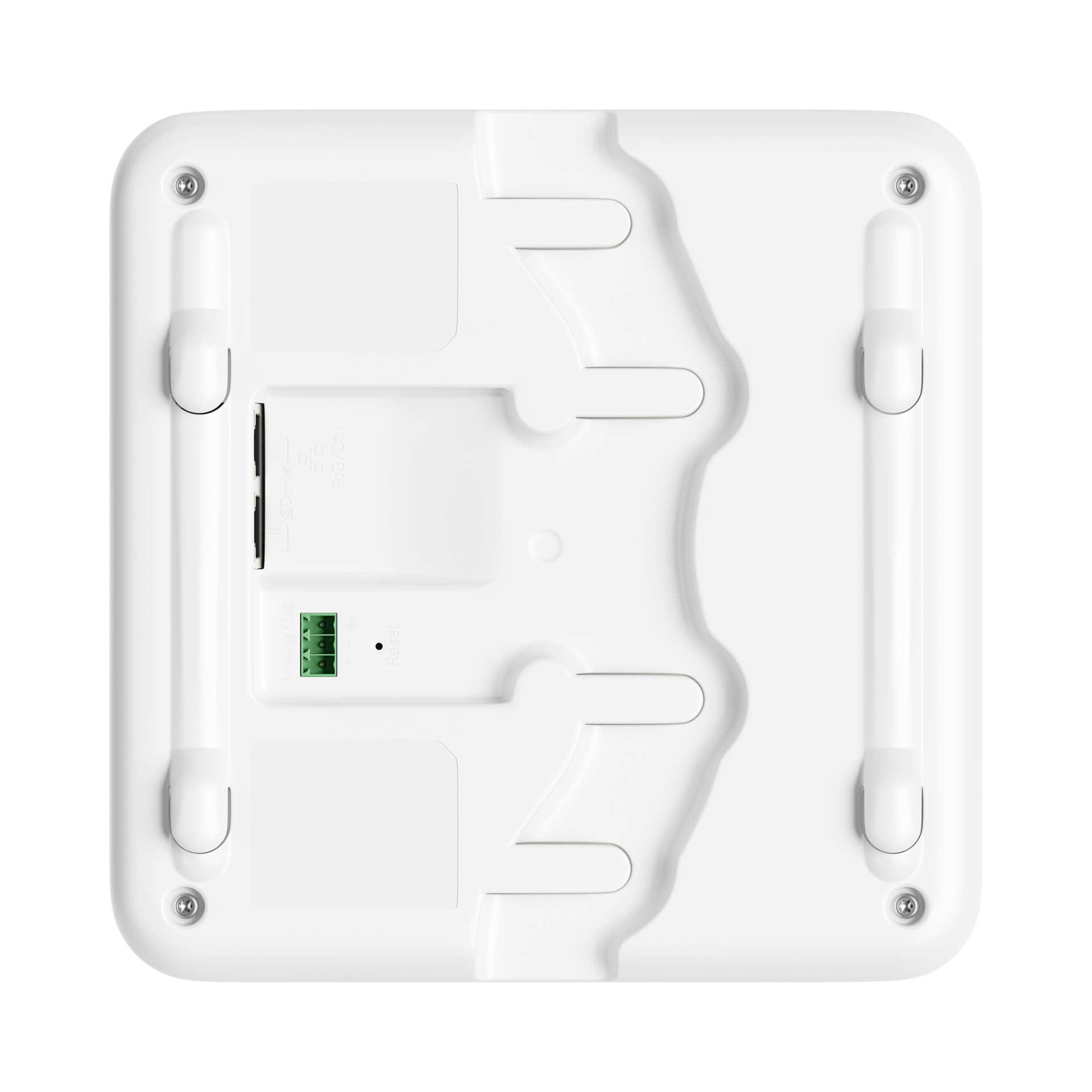

  • SpeechLine_Digital_Wireless_shot_cutout_back_Multi_Channel_ReceiverChange to image slide 4

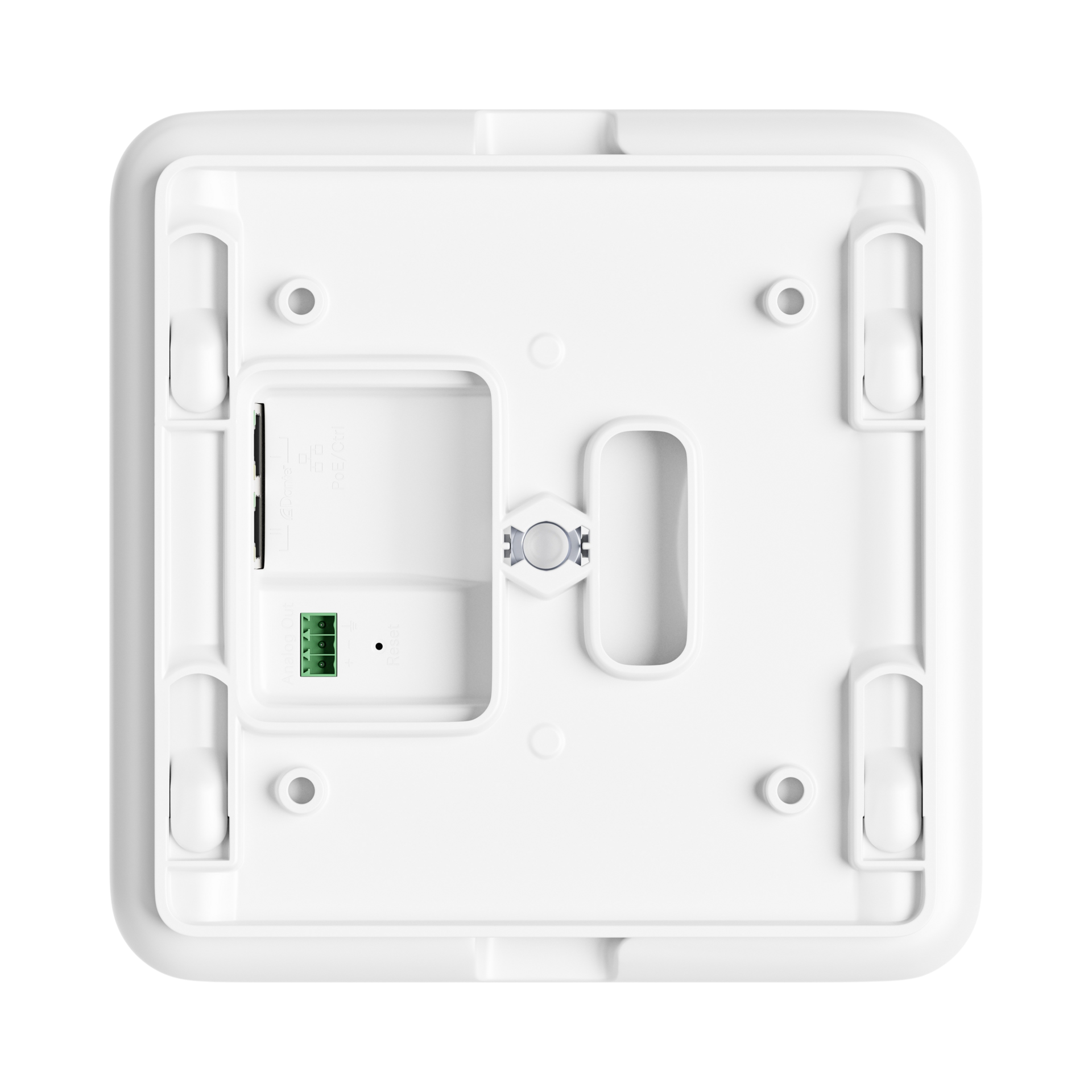

  • SpeechLine_Digital_Wireless_shot_cutout_back_Multi_Channel_Receiver_with_Wall_MountChange to image slide 5

SL MCR 2 DW-3

Article No. 508849

Features11

  • Automatic Gain Control
  • Automatic Frequency management
  • AES 256 encryption
  • 2-port Dante
  • PoE
  • Analog Mix Output
  • One status LED per Link
  • Remote control via Control Cockpit or media control
  • Wall, ceiling or mic stand mounting
  • Integrated Automixer
  • DDM Ready

Top Specs

  • ColorWhite
  • Dimensions180 x 180 x 45 mm (incl. wallmount)
  • Weight (g)650 g (incl. wallmount)
  • Audio outputOne 3-pin socket (suitable for Phoenix Contact MCVW 1.5-3-ST-3.81) Two Danteâ„¢ Digital Audio Network sockets (RJ-45)
  • Danteâ„¢Primary and Secondary
  • Latency (ms)23 ms
  • Power consumption (Amp)< 15 W

Tech Specs

Product
  • Automatic gain control (AGC)
    Yes
  • Latency (ms)
    23 ms
  • Color
    White
  • Total harmonic distortion (THD)
    typ. 0.1 %
Frequency Specifications
  • Audio frequency response
    20 to 20,000 Hz
Acoustic Properties
  • Dynamic range (>)
    > 120 dB (A)
Connectivity
  • Connection
    Wireless
  • Connectors
    RJ45 (for Ethernet)
Inputs/Outputs
  • Danteâ„¢
    Primary and Secondary
  • Audio output
    One 3-pin socket (suitable for Phoenix Contact MCVW 1.5-3-ST-3.81) Two Danteâ„¢ Digital Audio Network sockets (RJ-45)
Ambient Conditions
  • Operating relative humidity (≤ %)
    max. 95 %
  • Operating temperature (C)
    -10°C to +45°C (14°F to 113°F)
Battery & Power
  • Battery included
    N
  • Power consumption (Amp)
    < 15 W
Technology
  • Encryption
    AES 256
Dimensions
  • Dimensions
    180 x 180 x 45 mm (incl. wallmount)
  • Height (mm)
    94
  • Length (mm)
    250
  • Weight (g)
    650 g (incl. wallmount)
  • Width (mm)
    225
  • Product height
    45
  • Product length
    180
  • Product weight (g)
    560
  • Product width
    180

Downloads28

chevron-up
  • SL MCR DW Specifications & Manufacturer declarations
    .PDF
    ·
    668.23 KB
    Download
  • SL_MCR_2_DW_4_2_6_4
    .DNT
    ·
    5.07 MB
    Download
  • Q-Sys control plug-in SpeechLine Digital Wireless
    .QPLUG
    ·
    132.99 KB
    Download
  • Crestron Module SpeechLine Digital Wireless
    .ZIP
    ·
    7.67 MB
    Download
  • 3D model SL MCR DW
    .STP
    ·
    31.39 MB
    Download
  • Outline dimensions SL MCR DW (DWG)
    .DWG
    ·
    1.32 MB
    Download
  • Outline dimensions SL MCR DW (DXF)
    .DXF
    ·
    4.69 MB
    Download
  • System Specification - SpeechLine Digital Wireless
    .PDF
    ·
    1.46 MB
    Download
  • Product specification - SL MCR DW
    .PDF
    ·
    235.56 KB
    Download
  • Configuration of 802.1X for SL Multi-Channel Receiver DW
    .PDF
    ·
    357.77 KB
    Download
  • Planning and setting up single-room and multi-room installations with SpeechLine Digital Wireless
    .PDF
    ·
    274.47 KB
    Download
  • Digital Brochure SpeechLine Digital Wireless
    .PDF
    ·
    6.63 MB
    Download
  • Release Notes - SpeechLine Digital Wireless Firmware
    .PDF
    ·
    149.95 KB
    Download
  • Quick Guide - SL MCR DW
    .PDF
    ·
    2.51 MB
    Download
  • Instruction manual SpeechLine Digital Wireless (PDF)
    .PDF
    ·
    16.11 MB
    Download
  • Sennheiser Sound Control Protocol for SpeechLine Digital Wireless
    .PDF
    ·
    501.83 KB
    Download
  • EU Declaration of Conformity - SL Multi-Channel Receiver DW
    .PDF
    ·
    138.04 KB
    Download
  • SpeechLine Digital Wireless Firmware 4.0 (SL Multi-Channel Receiver DW)
    .ZIP
    ·
    7.46 MB
  • SpeechLine Digital Wireless Firmware 4.1 (SL Multi-Channel Receiver DW)
    .ZIP
    ·
    7.46 MB
  • SpeechLine Digital Wireless Firmware 4.2 (SL Multi-Channel Receiver DW)
    .ZIP
    ·
    7.46 MB

What's in the box05

  • SL MCR DW
  • Wall mounting plate
  • Drilling template
  • 3-pin phoenix connector (3,81mm)
  • Quick Guide
