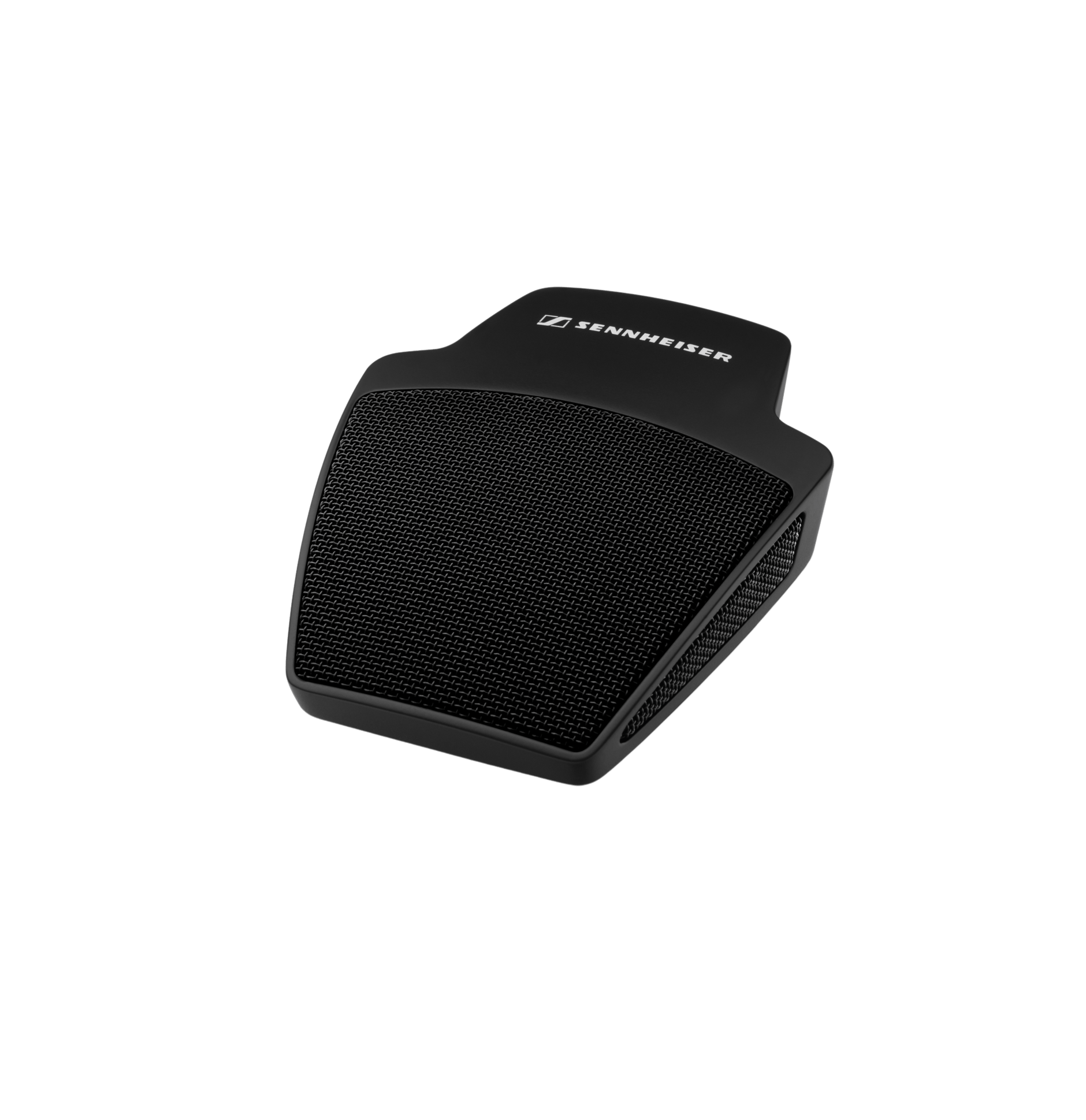

  • SpeechLine_Wired_MEB_114_Product_shot_Isofront_cutout_B_01.pngChange to image slide 0

MEB 114 B

Article No. 505612

Wired table boundary microphone with half-cardioid pickup pattern. Thanks to its sturdy housing and high-quality microphone capsule, the MEB 114 guarantees optimum speech intelligibility. The MEB 114 has won the iF Produkt Design Award for its modern design. The model is available in black and white color.

The sturdy on-table boundary layer microphone MEB 114 constitutes an improvement for any conferencing system. Thanks to its rugged housing and its high-quality microphone capsule the MEB 114 ensures the best speech intelligibility.
Scroll to:

Top Specs

  • Dimensions3.34 x 3.93 x 0.98 in (W x D x H)
  • Weight (g)10.26 oz
  • Max. sound pressure level140 dB
  • Polar patternCardioid
  • Sensitivity10 mV/Pa
  • Transducer principlepre-polarized condenser microphone

Tech Specs

Product
  • Polar pattern
    Cardioid
  • Transducer principle
    pre-polarized condenser microphone
Frequency Specifications
  • Frequency response
    40 Hz – 20 kHz
  • Audio frequency response
    40 Hz – 20 kHz
Acoustic Properties
  • Dynamic range (>)
    111 dB (A)
  • Equivalent noise level (db)
    29 dB (A)
  • Max. sound pressure level
    140 dB
Connectivity
  • Connection
    Wired
  • Connectors
    3-pin_XLR mini
Ambient Conditions
  • Operating temperature (C)
    -10 °C to +50 °C (14 °F to 122 °F)
Battery & Power
  • Battery included
    N
  • Phantom power
    24 – 48 V
  • Phantom powering
    P 24 - P 48
Electrical Properties
  • Nominal impedance
    200 Ω
  • Sensitivity
    10 mV/Pa
Dimensions
  • Height (mm)
    58
  • Length (mm)
    205
  • Width (mm)
    170
  • Product height
    25
  • Product length
    100
  • Product weight (g)
    286
  • Product width
    85
  • Dimensions
    3.34 x 3.93 x 0.98 in (W x D x H)
  • Weight (g)
    10.26 oz

Downloads21

chevron-up
  • Safety instructions Speechline Series
    .PDF
    ·
    558.39 KB
    Download
  • Outline dimensions MEB 114 (DWG)
    .DWG
    ·
    547.84 KB
    Download
  • Quick guide MEB 114/-S
    .PDF
    ·
    1.68 MB
    Download
  • Instruction Manual SpeechLine Wired
    .PDF
    ·
    5.31 MB
    Download
  • Product Specification MEB 114, MEB 114-S
    .PDF
    ·
    346.18 KB
    Download
  • Connection Guide MEB 114 & MEB 114-S
    .PDF
    ·
    449.12 KB
    Download
  • Connection Guide 2x MEB 114-S with TeamConnect
    .PDF
    ·
    313.58 KB
    Download
  • Connection Guide 2x MEB 114-S with Biamp Nexia / Tesira
    .PDF
    ·
    134.42 KB
    Download
  • Connection Guide 2x MEB 114-S with Polycom SoundStructure
    .PDF
    ·
    197.64 KB
    Download
  • Application guide SpeechLine microphones
    .PDF
    ·
    1.99 MB
    Download
  • EU Declaration of Conformity - MEB | MAS | MAT series
    .PDF
    ·
    456.39 KB
    Download
  • Product brochure SpeechLine Wired
    .PDF
    ·
    2.04 MB
    Download

What's in the box03

  • MEB 114 Microphone
  • Quickguide
  • Cable
