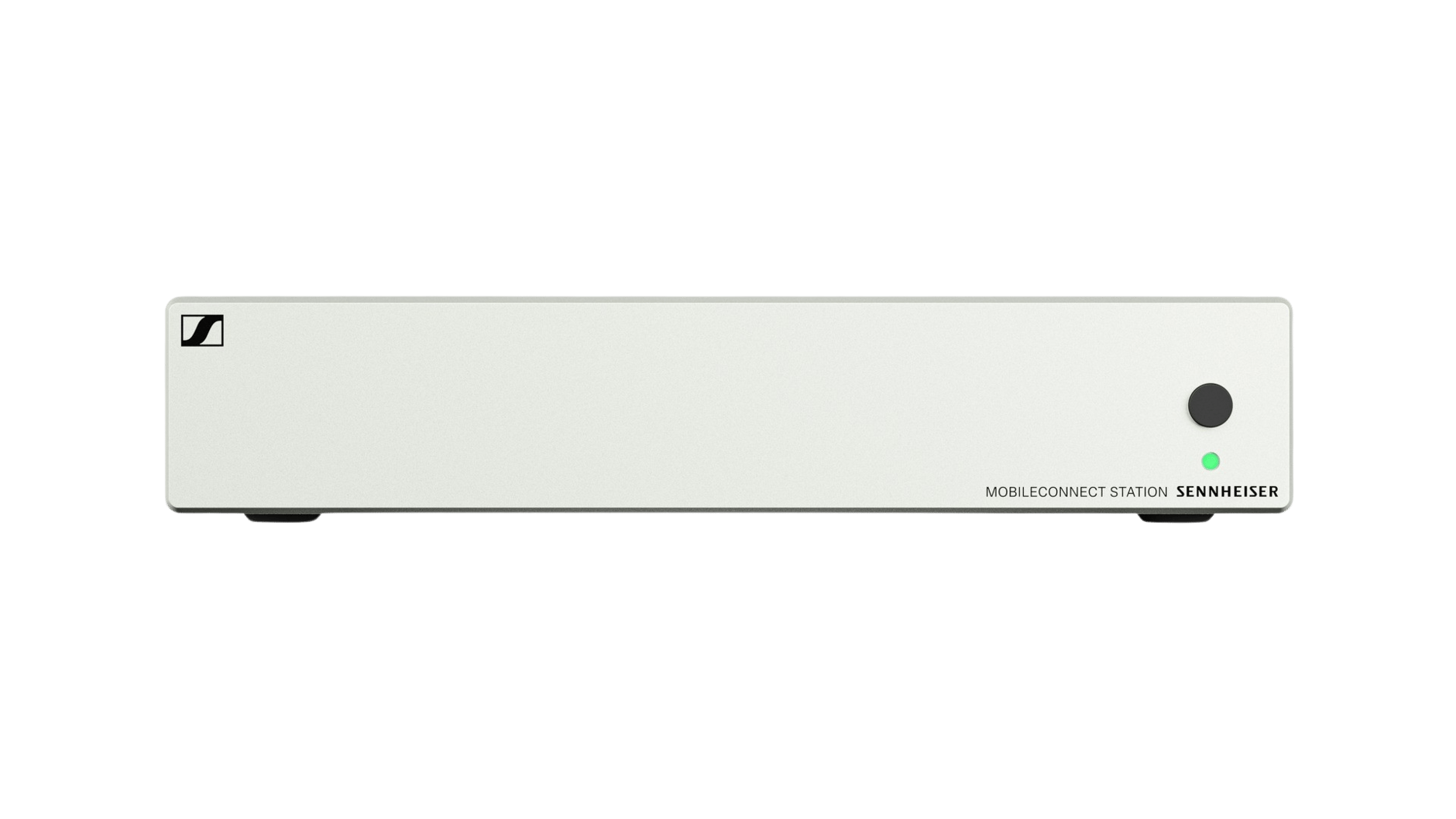

MobileConnect Station

Article No. 508895

Features11

  • Via Dante digital audio, Stations sit across networks removing installation proximity requirements
  • Offers either two Assistive Listening channels per Station or one bi-directional channel per Station (Assistive Listening & Audience Mic)
  • Unicast audio streaming with as little as 25 ms latency, depending on network and user devices*
  • Supports up to 100 clients per Station
  • Two available integration modes
  • Standalone Mode: Individual installations with a single Station
  • Manager Mode: Larger, advanced installation with multiple stations
  • Audio streams are available in either mono or stereo operation
  • Powered over Ethernet
  • Dante and XLR compatible
  • Connects to 3rd-party user control systems through Crestron, Extron, QSC plugins, or other systems using the MobileConnect API *Average is 40-60 ms.

Top Specs

  • Dimensions½ 19" housing approx. 212 x 168 x 43 mm (8.4" x 6.6" x 1.7")
  • Weight (g)approx. 970 g
  • Audio input- 2x 3-pin sockets (suitable for XLR-3-F)
  • Input impedance10 kΩ
  • Latency (ms)40-60 ms (Depending on network infrastructure and mobile device)
  • Power consumption (Amp)Max. 10 W
  • Signal-to-noise ratio101 dB (A)

Tech Specs

Product
  • Latency (ms)
    40-60 ms (Depending on network infrastructure and mobile device)
Frequency Specifications
  • Frequency response
    40 Hz - 20 kHz
  • Audio frequency response
    40 Hz to 20 kHz
Acoustic Properties
  • Sampling rates
    48 kHz
  • Signal-to-noise ratio
    101 dB (A)
Inputs/Outputs
  • Audio input
    - 2x 3-pin sockets (suitable for XLR-3-F)
Battery & Power
  • Battery included
    N
  • Power consumption (Amp)
    Max. 10 W
Electrical Properties
  • Input impedance
    10 kΩ
Dimensions
  • Dimensions
    ½ 19" housing approx. 212 x 168 x 43 mm (8.4" x 6.6" x 1.7")
  • Height (mm)
    43
  • Length (mm)
    212
  • Weight (g)
    approx. 970 g
  • Width (mm)
    168
  • Product height
    43
  • Product length
    212
  • Product weight (g)
    970
  • Product width
    168

Downloads12

chevron-up
  • MobileConnect System Specification
    .PDF
    ·
    269.07 KB
    Download
  • Digital Brochure MobileConnect EN
    .PDF
    ·
    9.15 MB
    Download
  • Digital Brochure MobileConnect EN
    .PDF
    ·
    2.95 MB
    Download
  • Digital Brochure MobileConnect EN
    .PDF
    ·
    9.1 MB
    Download

What's in the box04

  • Sennheiser MobileConnect Station
  • Housing feet
  • Quick Guide
  • Safety Guide
