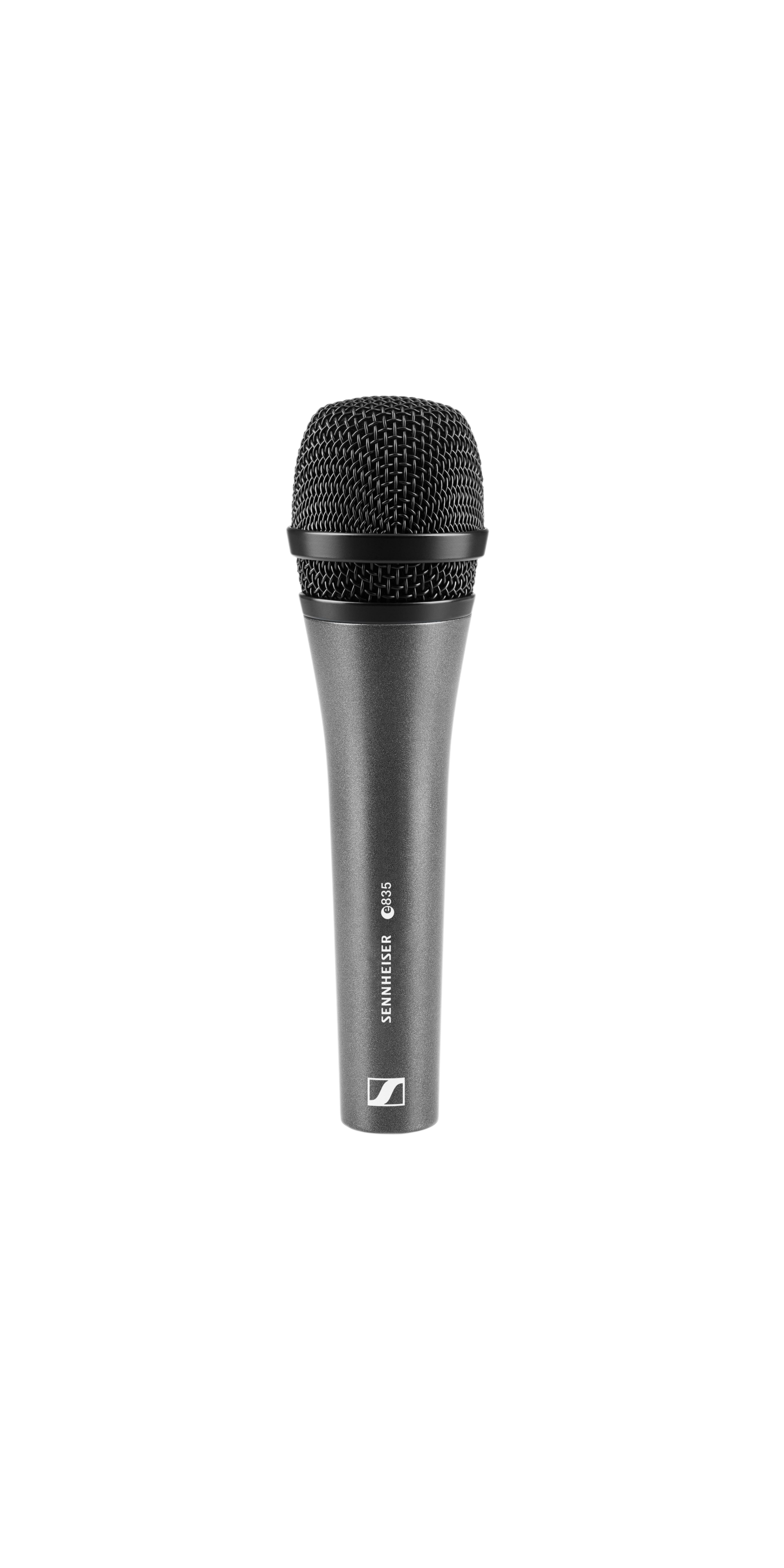

e 835

Article No. 004513

Dynamic cardioid microphone that projects well and cuts through high volumes on stage. Intended for home recording, semi-pro studios and live sound.

Lead vocal stage mic, designed to perform under pressure. Uniform frequency pick-up pattern maintains signal quality when moving on and off axis during performance. Gentle presence boost to even tonal response ensures clarity and projection. Minimal proximity effect provides consistently clear bass and performance when singing closer to or farther from capsule. Limited to the US only: Industry leading 10 year warranty! All parts and labor covered. *
Scroll to:

Features09

  • Dynamic cardioid microphone for speech and vocals
  • Cuts through high on-stage levels
  • Clear reproduction with a high presence
  • Consistent sound quality (varying distances, moving off axis)
  • Handles high sound pressure levels
  • Optional silent on/off switch
  • Isolates handling noise, hum compensating coil
  • Excellent feedback rejection
  • Rugged metal housing

Top Specs

  • DimensionsØ 48 x 180 mm
  • Weight (g)330 g
  • Polar patternCardioid
  • Transducer principleDynamic

Tech Specs

Product
  • Transducer principle
    Dynamic
  • Warranty AMER (years)
    10
  • Polar pattern
    Cardioid
Frequency Specifications
  • Frequency response
    40 - 16000 Hz
  • Audio frequency response
    40 - 16,000 Hz
Connectivity
  • Connection
    Wired
  • Connectors
    3-pin XLR
Ambient Conditions
  • Operating temperature (C)
    0 °C to 40 °C (14 °F to 131 °F)
Battery & Power
  • Battery included
    N
Electrical Properties
  • Nominal impedance
    350 Ω
  • Min. terminating impedance
    1000 Ω
Dimensions
  • Dimensions
    Ø 48 x 180 mm
  • Height (mm)
    80
  • Length (mm)
    260
  • Weight (g)
    330 g
  • Width (mm)
    120
  • Product height
    80
  • Product length
    260
  • Product weight (g)
    330
  • Product width
    120

Downloads11

chevron-up
  • Safety Instructions evolution wired 600, 800, 900 series
    .PDF
    ·
    673.2 KB
    Download
  • Bedienungsanleitung e 835/e 835-S (PDF)
    .PDF
    ·
    724.17 KB
    Download
  • Instruction manual e 835/e 835-S (PDF)
    .PDF
    ·
    724.02 KB
    Download
  • Instrucciones de manejo e 835/e 835-S (PDF)
    .PDF
    ·
    724.17 KB
    Download
  • Notice d'emploi e 835/e 835-S (PDF)
    .PDF
    ·
    724.26 KB
    Download
  • Instruction manual e 835/e 835-S (PDF)
    .PDF
    ·
    724.2 KB
    Download
  • Gebruiksaanwijzing e 835/e 835-S (PDF)
    .PDF
    ·
    724.39 KB
    Download
  • Manual de instruções e 835/e 835-S (PDF)
    .PDF
    ·
    723.85 KB
    Download
  • 使用说明书 e 835/e 835-S (PDF)
    .PDF
    ·
    816.93 KB
    Download
  • Produktdatenblatt e 385/e 835-S
    .PDF
    ·
    185.97 KB
    Download
  • Product specification e 835/e 835-S
    .PDF
    ·
    186.27 KB
    Download

What's in the box03

  • 1 e 835
  • 1 microphone clip
  • 1 pouch

Accessories and spare parts03

MZQ_800_product_shot
MZQ 800
577712
evolution Soft Pouch
MZW_4032_Product_shot_cutout
MZW 4032-C
