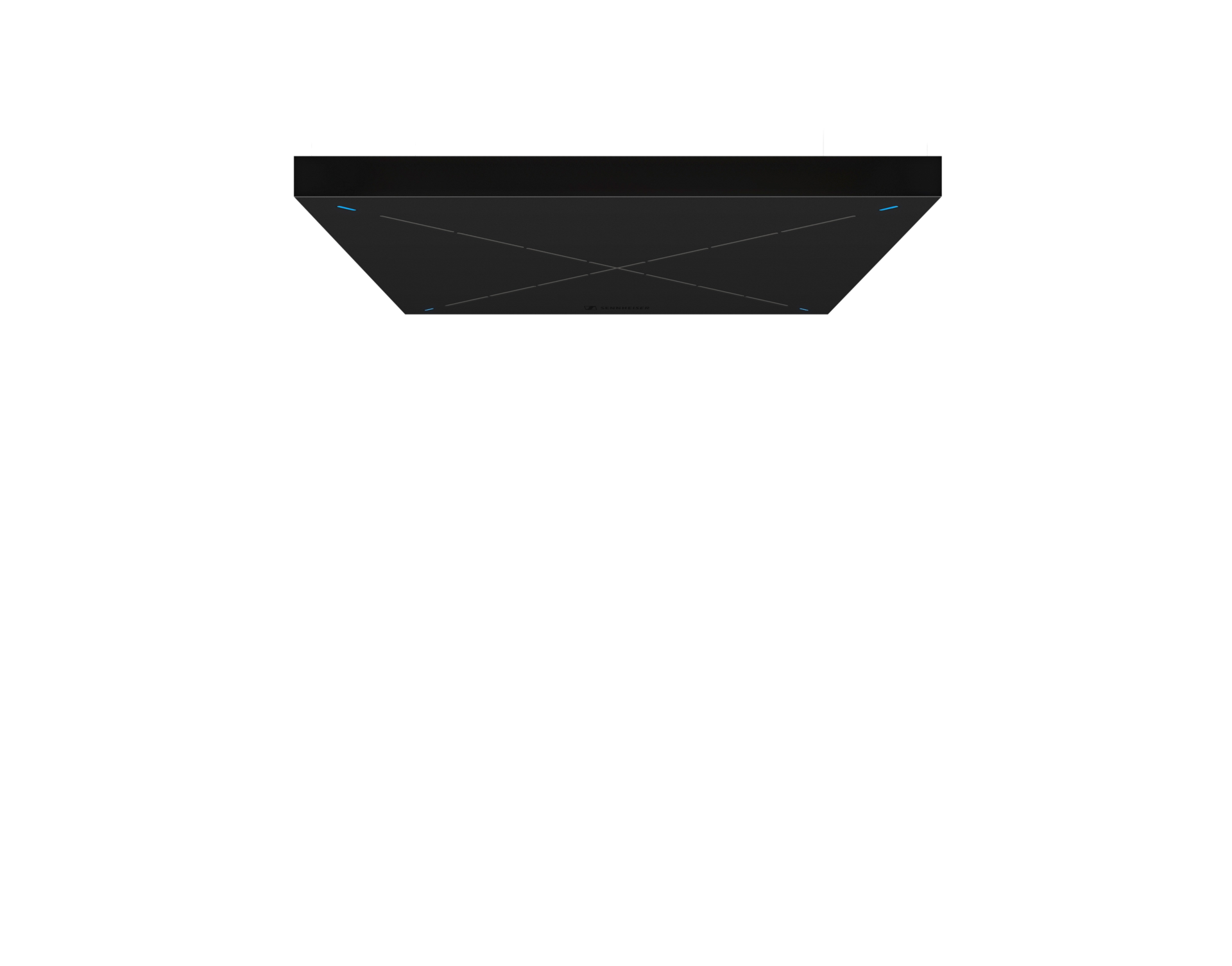

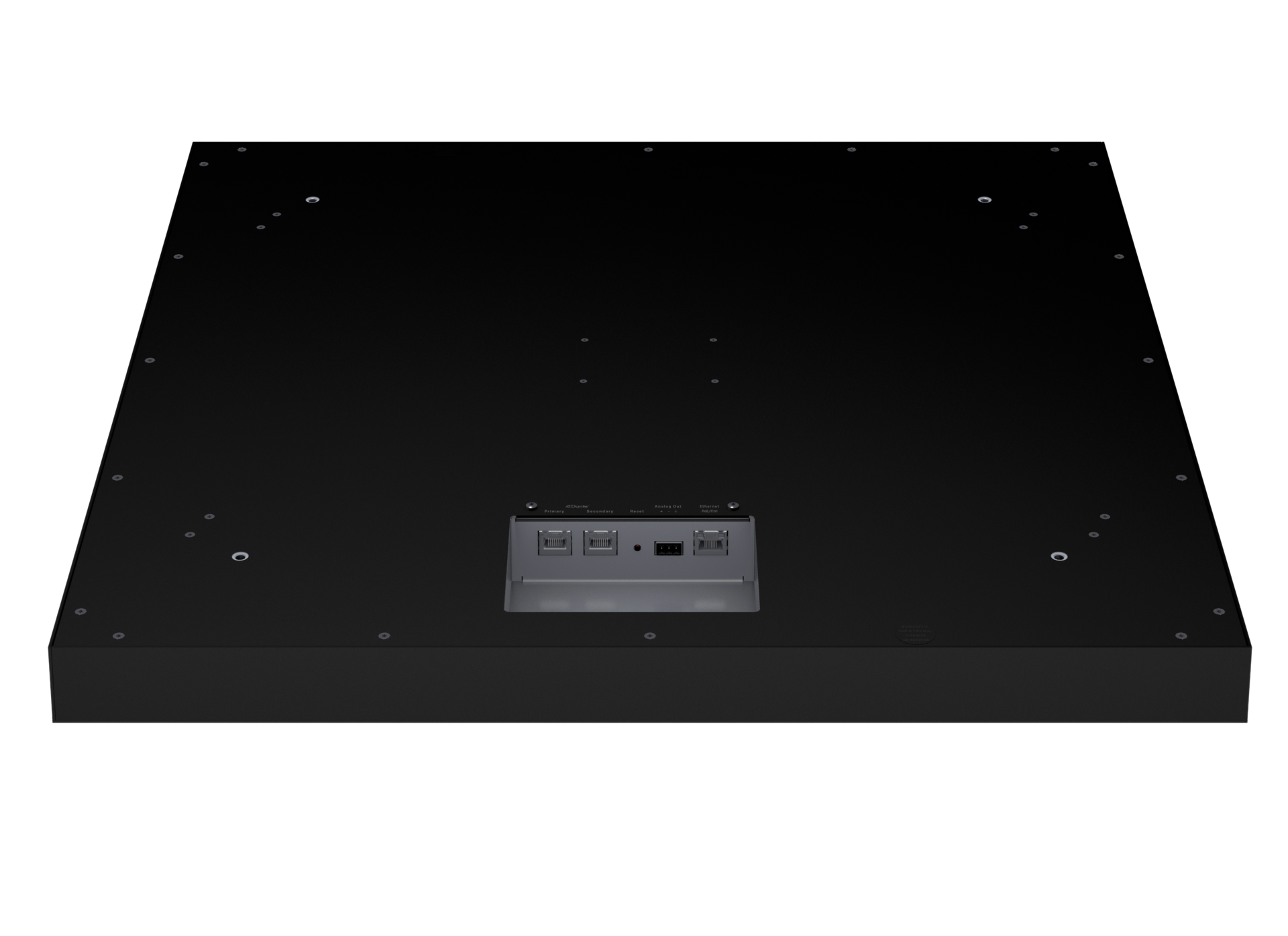

TeamConnect Ceiling 2 Black

Article No. 509161

There's still no better solution for larger meeting rooms and lecture or collaboration spaces than our industry-leading TeamConnect Ceiling 2 ceiling microphone.

With its functional square form the TCC 2 gracefully integrates into the design of modern meeting rooms – simply by replacing a ceiling tile. The TeamConnect Ceiling 2 is a real problem-solver that allows cable free tables and flexible furniture arrangement, while offering all of the TeamConnect Ceiling Solutions benefits like Trusted Sennheiser Audio Quality, efficient setup, brand agnostic integration, simple management and control, a sleek design and a sustainable impact.

Features¹²

Patented automatic dynamic beamforming
TruVoicelift
28 Electret condenser capsules, made in Germany
Perfect speech intelligibility
Dante or Analog Output
PoE
Certified for: MS Teams, Zoom, DingTalk and Tencent
Exclusion Zones
Priority Zone
Camera Control via talker position data
IEEE 802.1x
Color: Black

Top Specs

ColorBlack
Dimensions590 x 590 x 43 mm
Weight (g)Approx. 8500g shipping weight
Audio output1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)
Latency (ms)4 ms
Max. sound pressure level104 dB SPL
Power consumption (Amp)Max. 8.8 W
Sensitivity0 dBV/Pa (988 mV/Pa)
Signal-to-noise ratio83 dB (A)
Transducer principlePre-polarized condenser microphone

NorthLight School

TeamConnect Ceiling 2

Tech Specs

Product

Latency (ms)
4 ms
Transducer principle
Pre-polarized condenser microphone
Warranty AMER (years)
5
Color
Black

Frequency Specifications

Audio frequency response (Hz)
160 Hz to 18,000 Hz
Audio frequency response
160 Hz to 18,000 Hz

Acoustic Properties

Dynamic range (>)
93 dB (A)
Equivalent noise level (db)
11 dB (A)
Max. sound pressure level
104 dB SPL
Signal-to-noise ratio
83 dB (A)

Connectivity

Connection
Wired

Inputs/Outputs

Audio output
1 x 3-pin terminal (fits Phoenix contact MCVW 1.5-3-ST-3.81)

Ambient Conditions

Operating relative humidity (≤ %)
20 to 95%, non-condensing

Battery & Power

Battery included
N
Power consumption (Amp)
Max. 8.8 W

Electrical Properties

Sensitivity
0 dBV/Pa (988 mV/Pa)

Dimensions

Dimensions
590 x 590 x 43 mm
Height (mm)
130
Length (mm)
700
Weight (g)
Approx. 8500g shipping weight
Width (mm)
700
Product height
130
Product length
700
Product weight (g)
5670
Product width
700
