MAT 133-S B

Article No. 505624

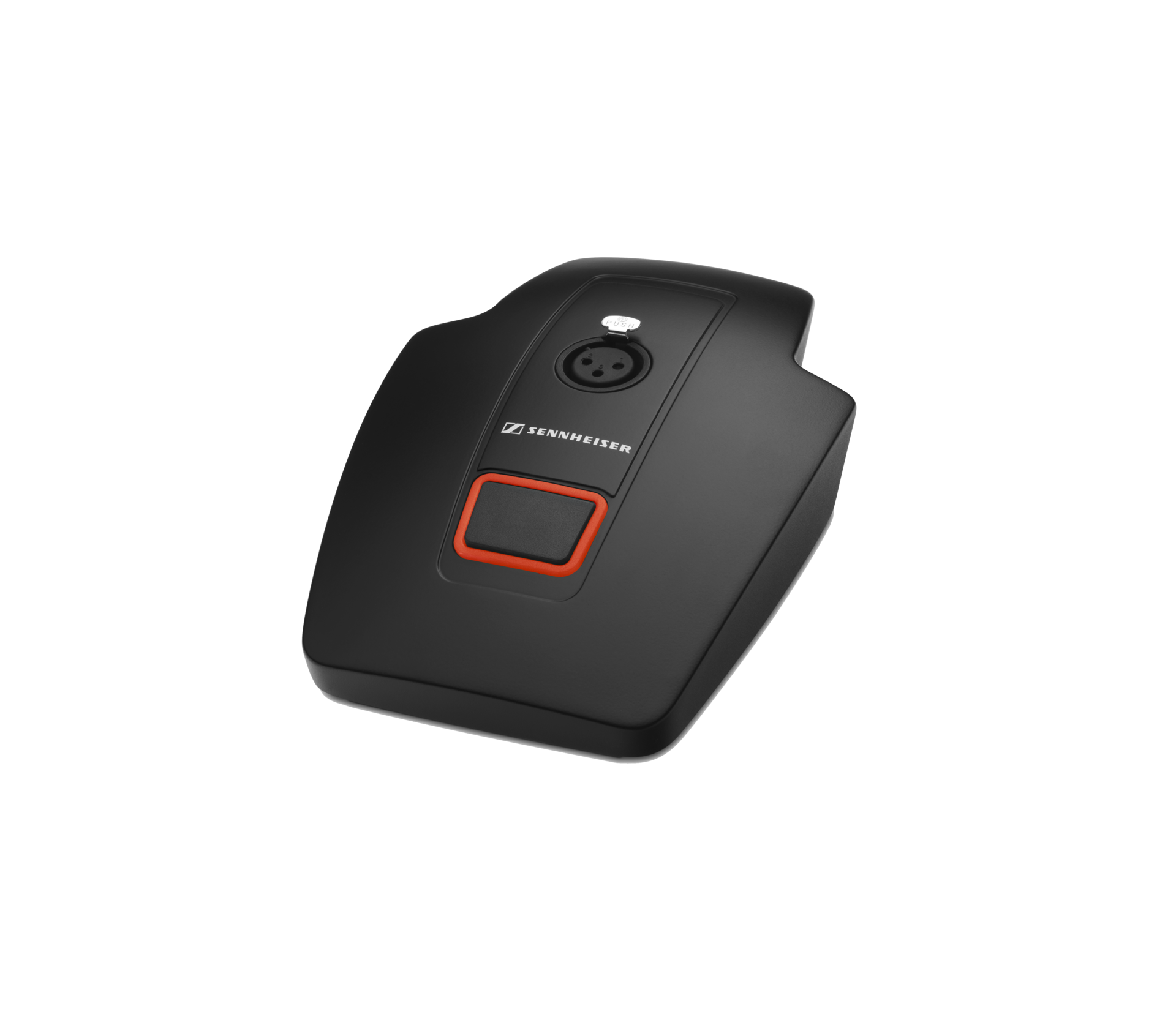

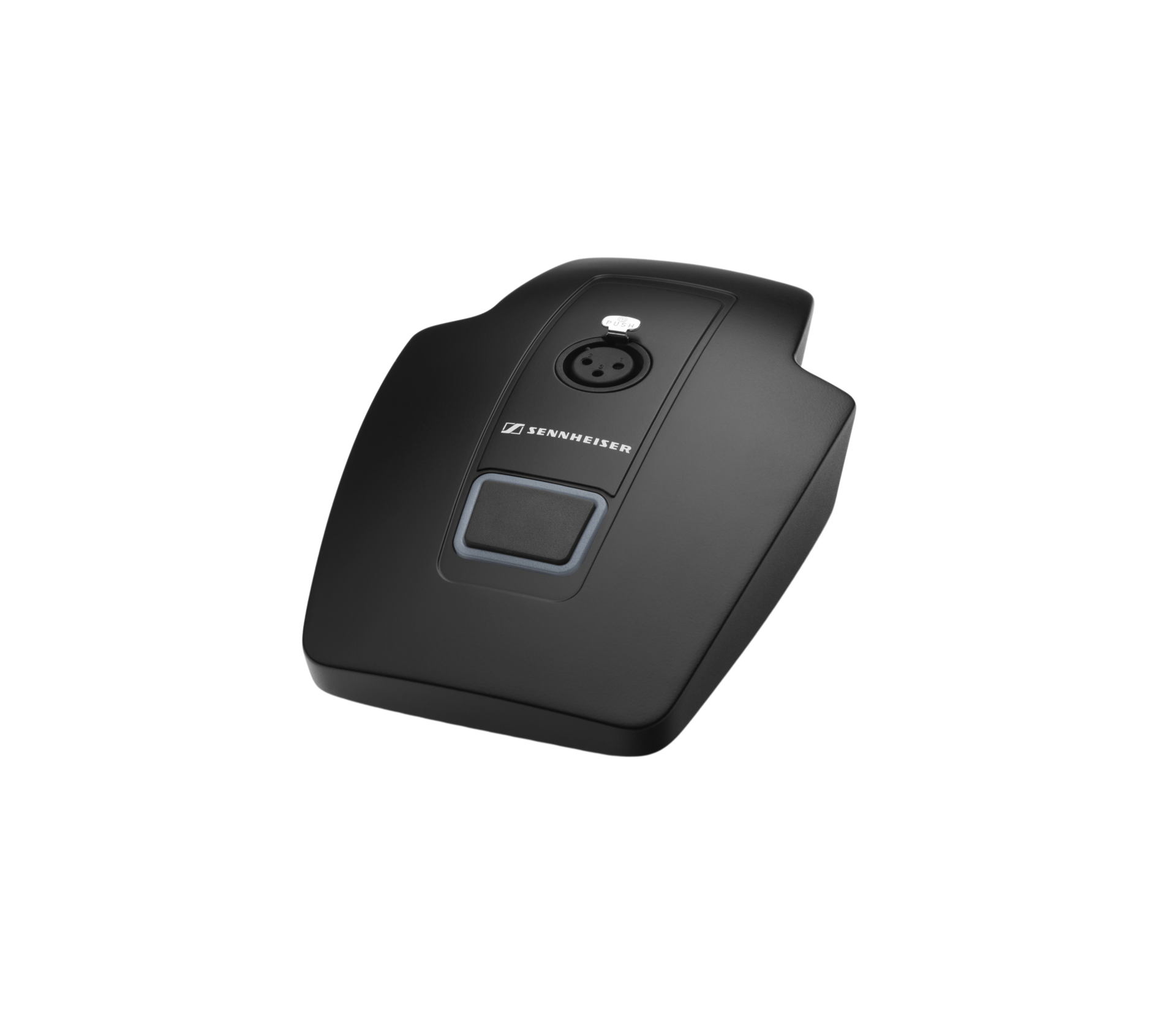

The MAT 133-S is a sturdy, wired table stand that provides a stable base for XLR-3 gooseneck microphones. It has a user-friendly microphone button with a two-color status display that provides quick visual feedback on whether the microphone is active or muted. The TTL logic output on the underside can be used to activate a camera or media control system. The model is available in black color.

The rugged housing of the functionally and unobtrusively designed MAT 133-S provides a solid ground for XLR-3 gooseneck microphones. A convenient microphone button is featured with a bi color light ring for clear visual feedback. The TTL-logic output serves for various control purposes such as camera control. The MAT 133-S is as versatile to install as it is to operate.
Scroll to:

Features05

  • Solid Microphone Stand
  • Timeless design
  • Bi-colored light ring for clear visual feedback
  • Logical function for easy control of e.g. cameras
  • Microphone modes: Toggle on/off Push to mute Push to talk permanent on (external LED control)

Top Specs

  • Dimensions4.72 x 6.69 x 1.69 in (W x D x H)
  • Weight (g)2.67 lb

Tech Specs

Connectivity
  • Connection
    Wired
  • Connectors
    3-pin XLR
Ambient Conditions
  • Operating temperature (C)
    14 ° to 122 ° F
Battery & Power
  • Battery included
    N
  • Phantom power
    P 24 - P 48
  • Phantom powering
    P 24 - P 48
Electrical Properties
  • Output voltage
    High level output voltage > 2.4 V, Low level output voltage < 0.4 V
Dimensions
  • Dimensions
    4.72 x 6.69 x 1.69 in (W x D x H)
  • Height (mm)
    94
  • Length (mm)
    250
  • Weight (g)
    2.67 lb
  • Width (mm)
    225
  • Product height
    94
  • Product length
    250
  • Product weight (g)
    1200
  • Product width
    225

Downloads17

chevron-up
  • Safety instructions Speechline Series
    .PDF
    ·
    558.39 KB
    Download
  • Quick guide MAT 133/-S and MAT 153-S
    .PDF
    ·
    1.71 MB
    Download
  • Instruction Manual SpeechLine Wired
    .PDF
    ·
    5.31 MB
    Download
  • Product Specification MAT 133, MAT 133-S, MAT 153-S
    .PDF
    ·
    437.37 KB
    Download
  • Connection Guide MAT 133-S & MAT 153-S
    .PDF
    ·
    440.74 KB
    Download
  • Application guide SpeechLine microphones
    .PDF
    ·
    1.99 MB
    Download
  • EU Declaration of Conformity - MEB | MAS | MAT series
    .PDF
    ·
    456.39 KB
    Download
  • Product brochure SpeechLine Wired
    .PDF
    ·
    2.04 MB
    Download

What's in the box02

  • MAT 133-S table stand
  • Quickguide
