XSW-D Lavalier Set

Article No. 508485

No obstacles, no distractions, just effortless audio, every time. Power up the lavalier and instantly link to the XLR receiver to start recording.

One-touch ease-of-use wireless audio set that utilizes a digital transmission to seamlessly link audio sources. Equipped with an ME2-II lavalier microphone, this elegant solution makes wireless presentations easier than ever before while maintaining a reliable connection.
Scroll to:

Features07

  • One touch ease-of-use
  • 2.4 GHz digital transmission for worldwide operation
  • 75m range (250ft) in optimal conditions
  • Up to 5 hours battery life on a single charge
  • Switch between multiple transmitters linked to one receiver
  • Configure any combination of transmitters and receivers
  • Mute from either transmitter or receiver

Top Specs

  • DimensionsXSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm
  • Weight (g)365
  • Audio outputmax. 12 dBu
  • Charging time (h)typ. 3 h
  • Latency (ms)< 4 ms
  • Signal-to-noise ratio≥ 106 dB

Tech Specs

Product
  • Total harmonic distortion (THD)
    < 0.1 %
  • Latency (ms)
    < 4 ms
Frequency Specifications
  • Audio frequency response
    3.5 mm Jack/XLR: 80 to 18,000 Hz
Acoustic Properties
  • Signal-to-noise ratio
    ≥ 106 dB
Inputs/Outputs
  • Audio output
    max. 12 dBu
Ambient Conditions
  • Operating relative humidity (≤ %)
    95 % (non-condensing)
  • Operating temperature (C)
    -10 °C to +55 °C (14 °F to 131 °F)
Battery & Power
  • Battery capacity (Ah)
    0.85
  • Battery count
    2
  • Battery included
    Y
  • Battery voltage (V)
    3.7
  • Battery specification
    Li-Ion
  • Battery operating time (h)
    up to 5 h
  • Charging time (h)
    typ. 3 h
Electrical Properties
  • Transmission power (mA)
    max. 10 mW
Technology
  • Codecs
    aptX® Live
Dimensions
  • Height (mm)
    70
  • Length (mm)
    240
  • Weight (g)
    365
  • Width (mm)
    115
  • Product height
    70
  • Product length
    240
  • Product weight (g)
    365
  • Product width
    115
  • Dimensions
    XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm

Downloads07

chevron-up
  • Specifications and manufacturer declarations - XSW-D Pedalboard Receiver
    .PDF
    ·
    700.62 KB
    Download
  • Safety instructions, specifications and manufacturer declarations - XSW-D series
    .PDF
    ·
    880.04 KB
    Download
  • Transport information for Lithium-Ion batteries
    .PDF
    ·
    588.01 KB
    Download
  • Product Specification XS Wireless Digital Lavalier Set
    .PDF
    ·
    211.86 KB
    Download
  • Instruction manual - XS Wireless Digital (PDF)
    .PDF
    ·
    10.77 MB
    Download
  • Quick Guide XS Wireless Digital
    .PDF
    ·
    2.64 MB
    Download
  • EU Declaration of Conformity XS Wireless Digital
    .PDF
    ·
    592.9 KB
    Download

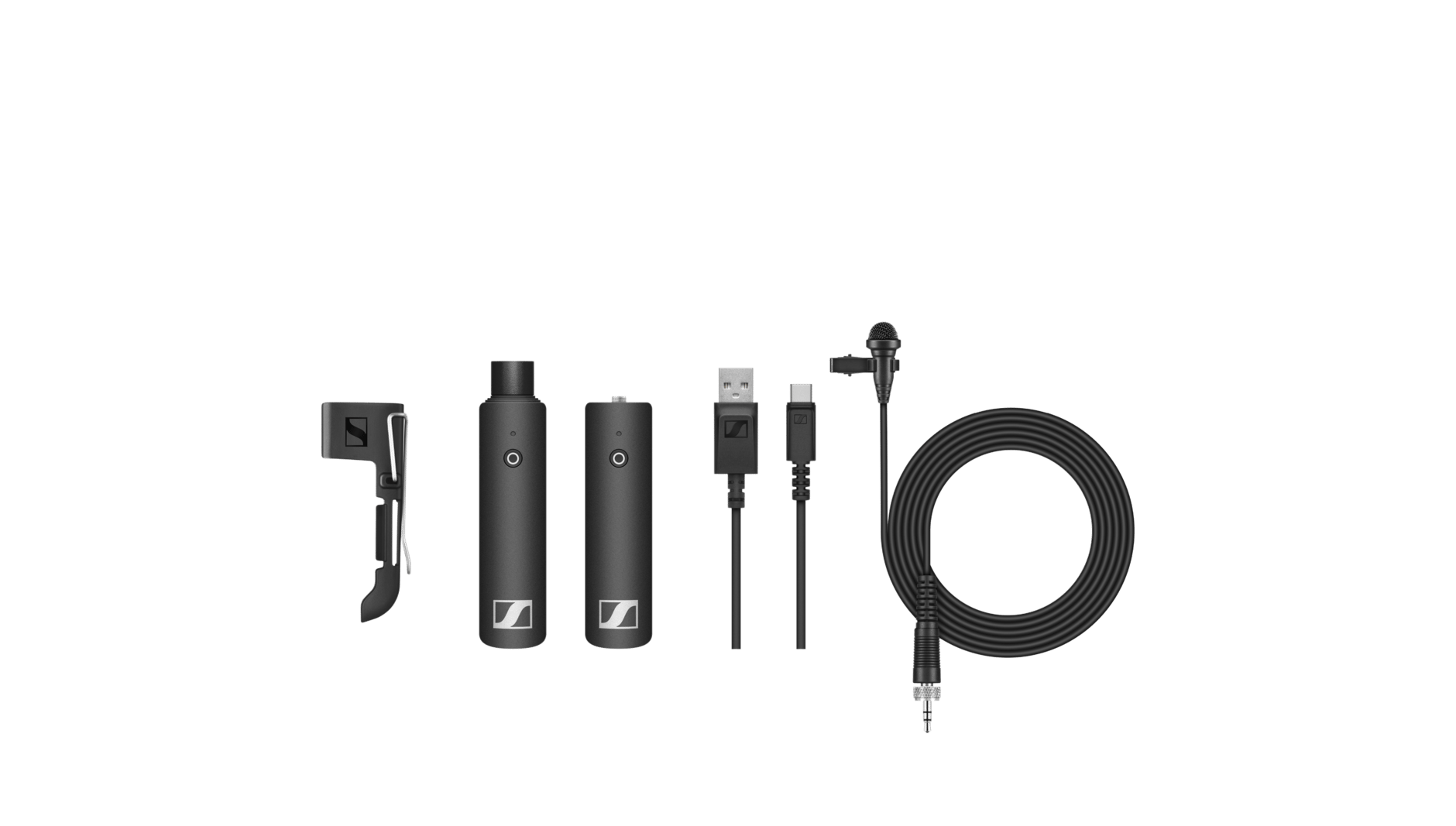

What's in the box05

  • ME2-II clip-on lavalier mic
  • XSW-D 3.5mm (1/8") transmitter
  • XSW-D XLR male receiver
  • Belt clip
  • USB-A to USB-C charging cable

Accessories and spare parts02

Sennheiser_XSW_Series_accessory_XSW-D_MINI_JACK_TX_01
XSW-D Mini Jack TX
Sennheiser_XSW_Series_accessory_XSW-D_MALE_RX_01
XSW-D XLR Male RX
