EW-DX EM 2 DANTE (Q1-9)
Article No. 509356
Features18
- Two-channel digital half rack (9.5") with Dante® in rugged metal housing
- Up to 88 MHz switching bandwidth
- Flexible network modes: single cable (Control, Dante®, PoE), split mode (Control + PoE and Dante® daisy chain), redundancy mode (Control + PoE, Dante® Prim, Dante® Sec)
- Low latency of 1.9 ms wireless transmission thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- 134 dB input dynamic range - no need to set gain on your wireless transmitters at all, thanks to proprietary Sennheiser Performance Audio Codec (SePAC)
- Equidistant channel spacing to easily allocate intermodulation-free channels: Standard Mode with 600 kHz spacing for up to 146 channels; Link Density (LD) Mode with 300 kHz spacing for up to 293 channels
- Network enabled for expanded remote control with Sennheiser Control Cockpit, Wireless System Manager (WSM - Available in mid-2023) and 3rd party media control systems via plug-in
- Power over Ethernet (PoE IEEE 802.3af Class 3)
- Ethernet connectivity (IPv4 and IPv6)
- Secure transmission of confidential content using AES 256 encryption
- AutoScan-feature quickly scans your environment and deploys frequencies with equidistant channel spacing - even without RF knowledge
- Link Quality Indicator (LQI) showing the quality of the links seperate to the RF levels
- Remote control via Smart Assist App over Bluetooth® Low Energy (BLE) at distances up to 25 meters (Available in late 2023)
- Clear and easy focused user interface with OLED display, jog wheel navigation and control buttons
- Selective headphone output with volume control on front panel
- Extended menu settings such as custom frequency list, selectable sync parameter and walk test
- External PSU 12V/1A
- Worldwide usage (specific frequencies subject to local RF regulations)
Top Specs
- Weight (g)2768
- Audio output2x 70 mW @ 32 Ω
- Latency (ms)1.9 ms
- Power consumption (Amp)max. 12 W
Tech Specs
Product
- Total harmonic distortion (THD)≤ -60 dB for 1 kHz @ -3 dBfs input level
- Latency (ms)1.9 ms
Frequency Specifications
- Audio frequency response20 Hz - 20 kHz (-3 dB)
Acoustic Properties
- Dynamic range (>)134 dB
- Audio output level18 dBu max.
Connectivity
- ConnectionWireless
Inputs/Outputs
- Audio output2x 70 mW @ 32 Ω
Ambient Conditions
- Operating relative humidity (≤ %)5 - 95 % (non-condensing)
- Operating temperature (C)-10 °C - +50 °C (14 °F - 122 °F)
Battery & Power
- Battery includedN
- Power consumption (Amp)max. 12 W
- Charging current (mA)≤ 1 A at 12 V DC
Electrical Properties
- Input voltage11 - 13 V ⎓ or PoE IEEE 802.3af Class 0 (CAT5e or higher)
- Transmission power (mA)BLE: max. 10 mW EIRP
Dimensions
- Height (mm)75
- Length (mm)405
- Weight (g)2768
- Width (mm)360
- Product height75
- Product length405
- Product weight (g)1000
- Product width360
Bluetooth
- Bluetooth transmission frequency2402 - 2480 MHz
Downloads49
What's in the box05

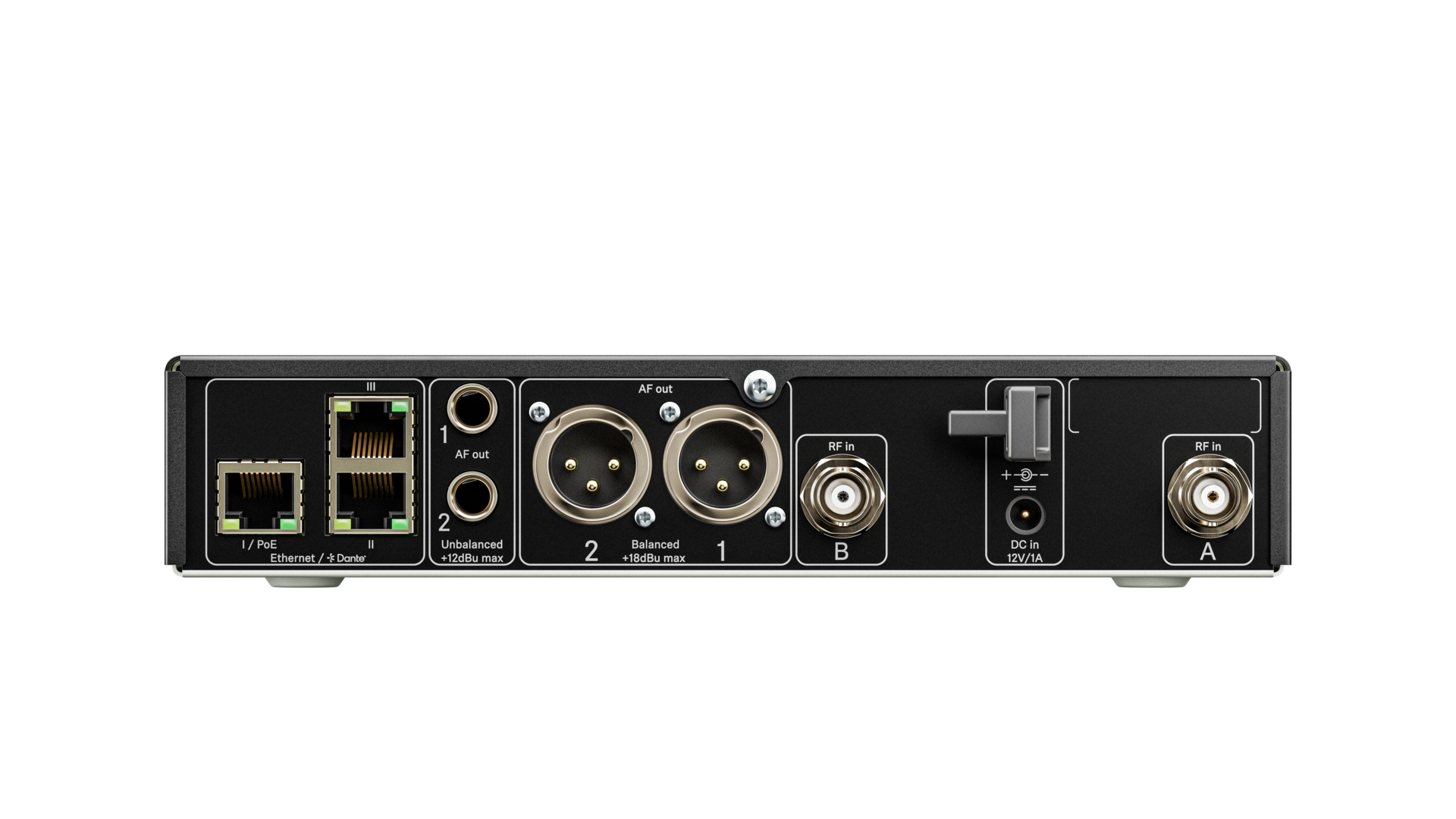

- EW-DX EM 2 Dante rack receiver
- GA 3 rack mount kit
- EW-D Power Supply with country adapters
- 2 rod antennas
- 4 rubber feet
